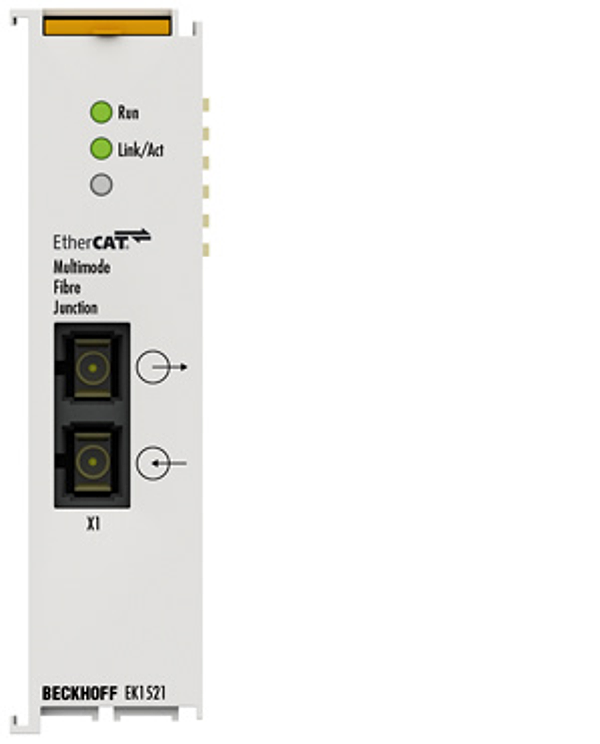

Beckhoff EK1521
EK1521 | 1-port EtherCAT fibre optic junction
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
In conjunction with an EK1100 EtherCAT Coupler, the EK1521 1-port EtherCAT fibre optic junction enables conversion from 100BASE-TX to 100BASE-FX physics (glass fibre). Distances of up to 2 km can be bridged with the EK1521 and the EK1501 EtherCAT Coupler for multimode fibre optics. Even cable redundant systems with fibre optic can be realised using the 1-port EtherCAT fibre optic junction. The run LED shows the status of the EK1521.
Технические характеристики
| Task within EtherCAT system: | coupling of EtherCAT junctions via multimode glass fibre |
| Data transfer medium: | multimode glass fibre 50/125 µm (MM) |
| Distance between stations: | max. 2000 m (100BASE-FX) |
| Number of EtherCAT Terminals: | – |
| Type/number of peripheral signals: | – |
| Protocol: | EtherCAT |
| Delay: | approx. 1 µs |
| Data transfer rates: | 100 Mbaud |
| Configuration: | not required |
| Bus interface: | 1 x SC Duplex |
| Power supply: | from E-bus |
| Current consumption E-bus: | typ. 350 mA |
| Current consumption 24 V DC: | – |
| Weight: | approx. 65 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
