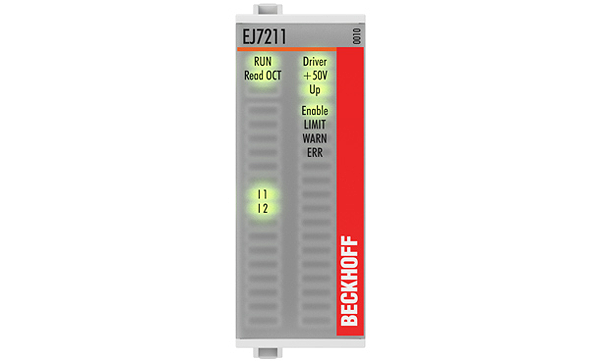

Beckhoff EJ7211-0010
EJ7211-0010 | EtherCAT plug-in module, servomotor module for OCT, 50 V DC, 4.5 A (I, rms
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EJ7211-0010 servomotor EtherCAT plug-in module with integrated One Cable Technology (OCT) offers high servo performance in a very compact design for motors from the AM8100 up to 4.5 A (I, rms. The One Cable Technology combines a motor cable and an absolute feedback system in a single cable. The integrated electronic type plate of the AM81xx motors can be read in automatically by the servo module to configure the motor parameters automatically. Thus, wiring and commissioning expenditure are minimised.
Технические характеристики
| Technology: | Compact Drive Technology |
| Load type: | permanent magnet-excited three-phase synchronous motor |
| Number of channels: | 1 |
| Number of outputs: | 1 x servo motor, 1 x motor brake |
| Number of inputs: | 2 x end position, 1 x feedback |
| Connection method: | direct motor connection with OCT |
| Supply voltage electronics: | 24 V DC (via distribution board) |
| Supply voltage power: | 8…50 V DC (via distribution board) |
| Output current (rms): | 4.5 A |
| Peak current (rms): | max. 9.0 A for 1 s |
| Frequency range: | 0…599 Hz |
| PWM clock frequency: | 16 kHz |
| Current controller frequency: | 32 kHz |
| Rated speed controller frequency: | 16 kHz |
| Output voltage motor brake: | 24 V DC |
| Output current motor brake: | max. 0.5 A |
| Auxiliary power current: | no data |
| Current consumption E-bus: | typ. 130 mA |
| Distributed clocks: | yes |
| Special features: | compact and system-integrated, absolute feedback, One Cable Technology (OCT), plug-and-play |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/see documentation |
| Approvals: | CE, UL |
