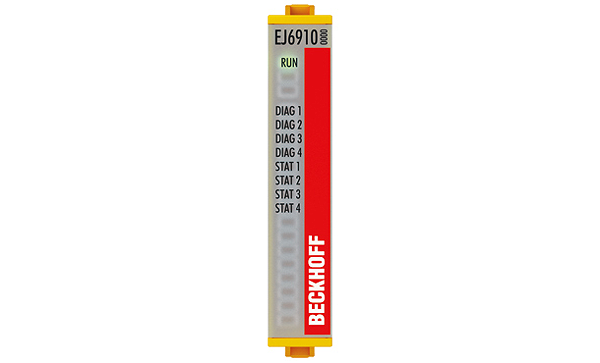

Article image EJ6910

Beckhoff EJ6910

EJ6910 | TwinSAFE Logic

По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"

Описание

The EJ6910 TwinSAFE Logic can establish up to 212 connections to other TwinSAFE devices. Several EJ6910 can be cascaded in a TwinSAFE network with up to 65,535 TwinSAFE devices. The EJ6910 EtherCAT plug-in module features certified safety function blocks, which are configured according to the application. Safety functions such as emergency stop, safety door monitoring, two-hand control, etc. can thus easily be selected and linked. All blocks can be freely connected among each other and are complemented by operators such as AND, OR, etc.

Технические характеристики

Connection technology: distribution board
Specification: link unit between safe input and output signals
Protocol: TwinSAFE/Safety over EtherCAT
Cycle time: approx. 1 ms/according to project size
Fault response time: ≤ watchdog time (parameterisable)
Current consumption E-bus: typ. 222 mA
Safety standard: EN ISO 13849-1:2015 (Cat. 4, PL e) and EN 61508:2010 (SIL 3)
Weight: approx. 27 g
Protection class: IP 20
Approvals/markings: Overview of TwinSAFE Certifications (PDF)
Download EtherCAT slave information (ESI): ESI config file EJx9xx (ZIP)

Логистические характеристики

ТН ВЭД:
Страна происхождения:
EAN:
Вес: 0,00 kg
Длина: 0,00 m
Ширина: 0,00 m
Высота: 0,00 m
