Beckhoff EJ6002

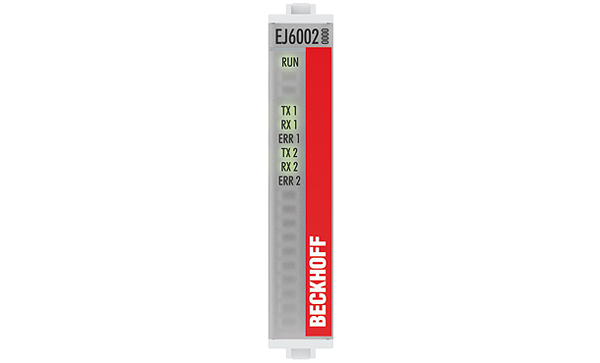

EJ6002 | 2-channel serial interface RS232, RS485 or RS422
Описание
The EJ6002 serial interface enables the connection of devices with two RS232, RS485 or RS422 interfaces. Apart from the convenient selection of the communication standard (RS232, RS485 or RS422) using the TwinCAT software, various operation modes can be set for the termination of connection cables. The devices connected to the EJ6002 EtherCAT plug-in module communicate with the automation device via the coupler. The active communication channel operates independently of the higher-level EtherCAT system in full duplex mode with 300 baud up to 256 kbaud. The serial interfaces guarantee high immunity to interference through electrically isolated signals. In conjunction with the TwinCAT Virtual Serial COM Driver, the EJ6002 can be used as a normal Windows COM interface.
Технические характеристики
| Technology: | serial interface |
| Interfaces: | individual selectable RS232, RS485 or RS422 |
| Data transfer channels: | 2 |
| Data transfer rates: | 300…256,000 baud (individual free configurable) |
| Data buffer: | 864 bytes receive buffer, 128 bytes transmit buffer |
| Current consumption E-bus: | 190 mA |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Dimensions (W x H x D): | 12 mm x 66 mm x 55 mm |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/see documentation |
| Approvals/markings: | CE, UL |
