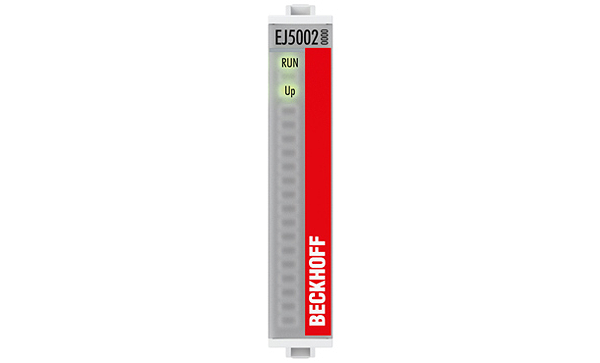

Beckhoff EJ5002
EJ5002 | 2-channel SSI encoder interface
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EJ5002 plug-in module allows the direct connection of two SSI encoders. The data is transmitted to the controller synchronously with the clock cycle dictated by the EJ5002. Various parameters make it possible to flexibly adapt the EJ5002 to the respective application. Different parameters can be set and analysed like operation mode, SSI transfer rate, coding and data length. Furthermore, an additional bit can be displayed in the process image.
Технические характеристики
| Encoder connection: | D+, D-, Cl+, Cl- |
| Input voltage: | 24 V DC (-15 %/+20 %) |
| Current consumption: | typ. 20 mA without encoder |
| Current consumption E-bus: | typ. 120 mA |
| Data transfer rates: | variable up to 1 MHz, 250 kHz default |
| Serial input: | 24 bit width (adjustable, max. 32 bit) |
| Data direction: | read |
| Distributed clocks: | yes |
| Signal input (data): | difference signal (RS422) |
| Signal output (pulse): | difference signal (RS422) |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Special features: | adjustable baud rate, coding and data length |
| Dimensions (W x H x D): | 12 mm x 66 mm x 55 mm |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class: | IP 20 |
| Approvals/markings: | CE, UL |
