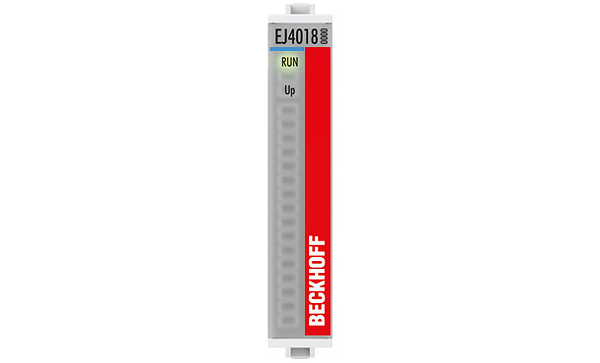

EJ4018
EJ4018 | 8-channel analog output 0…20 mA, 12 bit
The EJ4018 analog output generates signals in the range between 0 and 20 mA. The current is supplied to the process level with a resolution of 12 bit and is electrically isolated. The output stages are powered by the 24 V supply. The EJ4018 combines eight channels in one housing.
Connection technology: | 1-wire, single-ended |
Number of outputs: | 8 |
Supply voltage electronics: | 24 V DC (via distribution board) |
Signal current: | 0…20 mA |
Distributed clocks: | yes |
Load: | < 150 Ω |
Output error: | < ±0.1 % (relative to end value) |
Resolution: | 12 bit |
Electrical isolation: | 500 V (E-bus/field potential) |
Conversion time: | ~ 400 µs |
Current consumption periphery: | max. typ. 60 mA |
Current consumption E-bus: | typ. 80 mA |
Special features: | Optional watchdog: user-specific output value with ramp; user synchronisation can be activated. |
Dimensions (W x H x D): | 12 mm x 66 mm x 55 mm |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Approvals/markings: | CE, UL |
