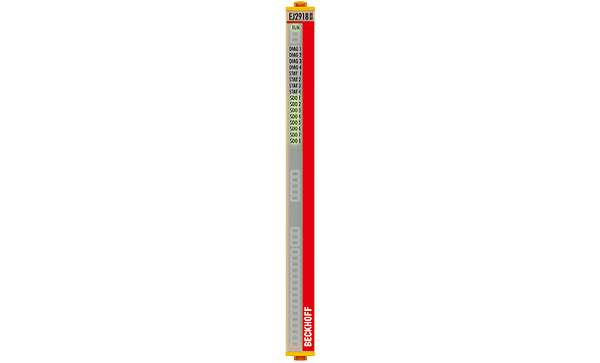

EJ2918
EJ2918 | 8-channel digital output, TwinSAFE Logic, 24 V DC
The EJ2918 EtherCAT plug-in module is a digital output module for actuators for 24 V DC. The plug-in module has eight fail-safe outputs.
Connection technology: | distribution board |
Specification: | link unit between safe input and output signals |
Number of outputs: | 8 |
Max. output current: | 0.5 A |
Protocol: | TwinSAFE/Safety over EtherCAT |
Fault response time: | ≤ watchdog time (parameterisable) |
Current consumption E-bus: | typ. 310 mA |
Safety standard: | EN ISO 13849-1:2015 (Cat. 4, PL e) and EN 61508:2010 (SIL 3) |
Weight: | approx. 62 g |
Protection class: | IP 20 |
Approvals/markings: | Overview of TwinSAFE Certifications (PDF) |
Download EtherCAT slave information (ESI): | ESI config file EJx9xx (ZIP) |
