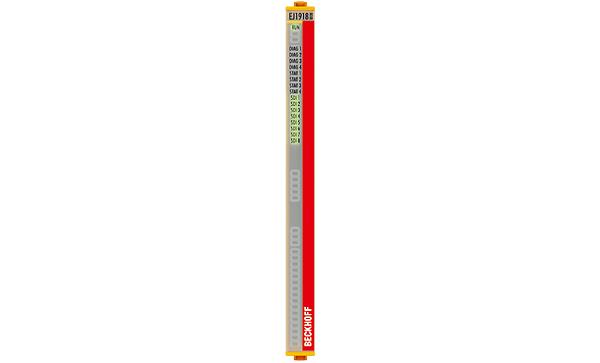

EJ1918
EJ1918 | 8-channel digital input, 24 V DC, TwinSAFE Logic
The EJ1918 EtherCAT plug-in module is a digital input module for sensors with potential-free contacts for 24 V DC. The plug-in module has eight fail-safe inputs.
Connection technology: | distribution board |
Specification: | link unit between safe input and output signals |
Protocol: | TwinSAFE/Safety over EtherCAT |
Response time: | typ. 4 ms (read input/write to E-bus) |
Fault response time: | ≤ watchdog time (parameterisable) |
Current consumption E-bus: | typ. 290 mA |
Safety standard: | EN ISO 13849-1:2015 (Cat. 4, PL e) and EN 61508:2010 (SIL 3) |
Weight: | approx. 60 g |
Protection class: | IP 20 |
Approvals/markings: | Overview of TwinSAFE Certifications (PDF) |
Download EtherCAT slave information (ESI): | ESI config file EJx9xx (ZIP) |
ТН ВЭД: | |
Страна происхождения: | |
EAN: | |
Вес: | 0,00 kg |
Длина: | 0,00 m |
Ширина: | 0,00 m |
Высота: | 0,00 m |
