2CPX034064R9999
KA3251
KA3251 Meter Board Compl. 7R

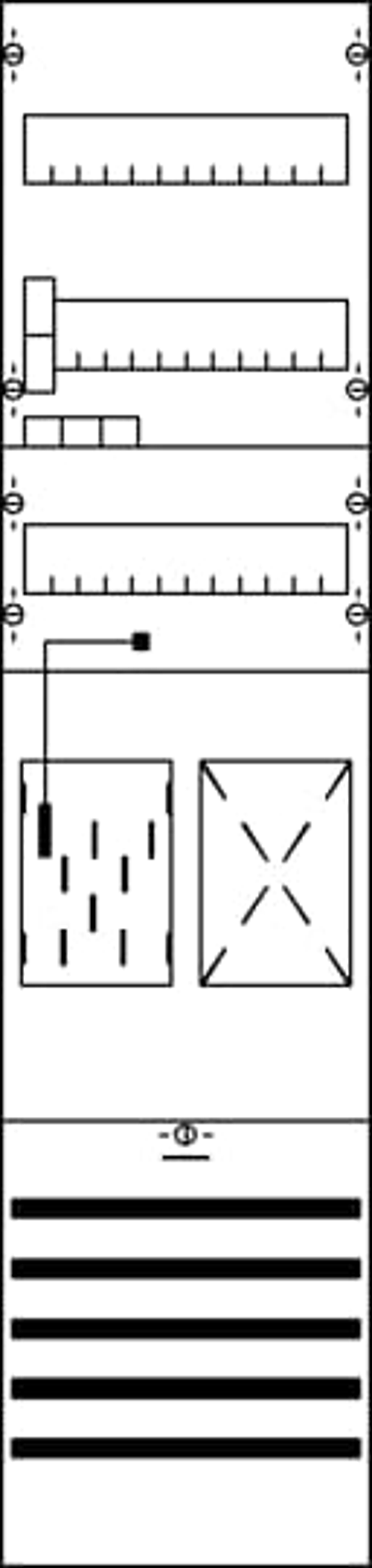

Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with BKE-I, rated current 63 A, dimensions in mm (H x W x D): 1050 x 250 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, Stecktechnik, incl. Data sensor 500 mm, net side compartment, meter space: with busbar, pre-assembled for main switch SH, net side compartment, SG space: with busbar, system side compartment, meter space: with Main branch terminal, compartment for additional devices of eHZ 150 mm, Number of meter spaces single tariff 1, Number of reserve spaces 1, Ratchet unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, 90 degree press and turn closure, RAL 7035
ТН ВЭД: | |
Страна происхождения: | DE |
EAN: | 4011617340645 |
Вес: | 6,44 kg |
Длина: | 1,06 m |
Ширина: | 0,25 m |
Высота: | 0,14 m |
