ABB 2CPX034012R9999

KA487

KA487 Current Transformer Cabine

Описание

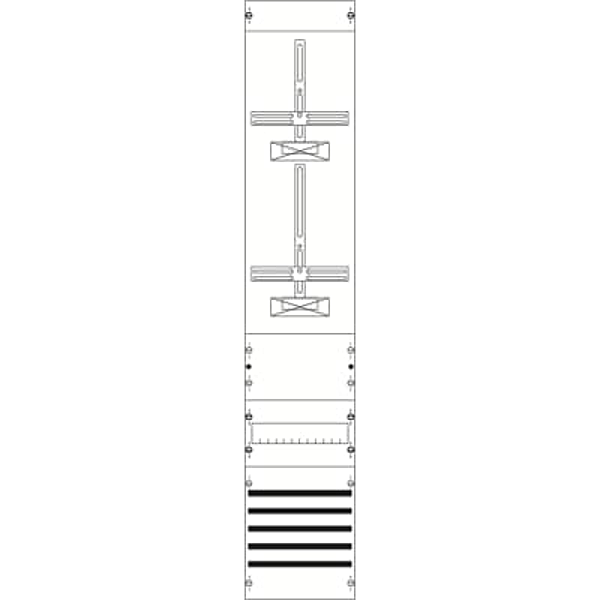

Meter panel, empty board, with Metering cross, for the internal use, applicable standards: EN 61439-1, dimensions in mm (H x W x D): 1350 x 250 x 160, Number of meter spaces single tariff 1, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, Room for test terminal, Note: Busbar terminals should be ordered seperately, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
