1SAX531001R1101
EF205-210

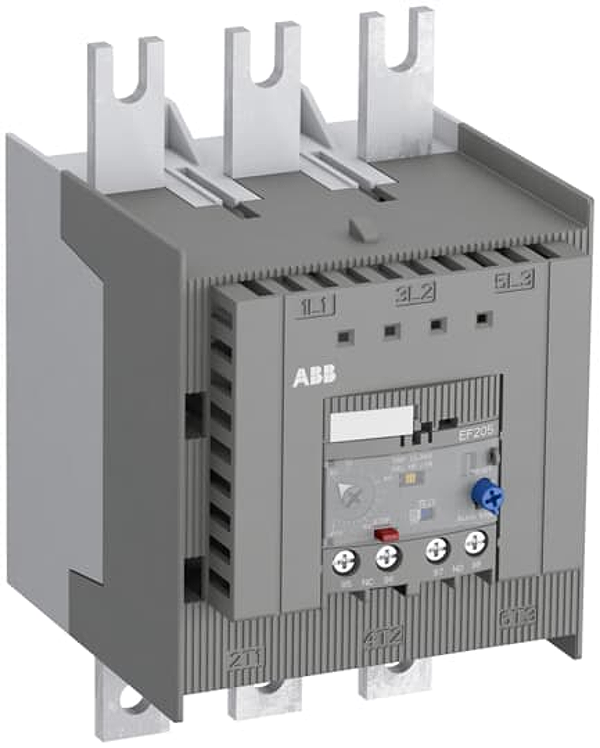

EF205-210 Electronic Overload Relay
The EF205-210 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors.The EF205 and EF370 have ATEX and IECEx certification 1). 1) ATEX is valid for products produced from week 42, 2014. IECEx is valid for products produced from week 15, 2017.
ТН ВЭД: | |
Страна происхождения: | CN |
EAN: | |
Вес: | 1,26 kg |
Длина: | 0,1228 m |
Ширина: | 0,105 m |
Высота: | 0,171 m |
