85321055

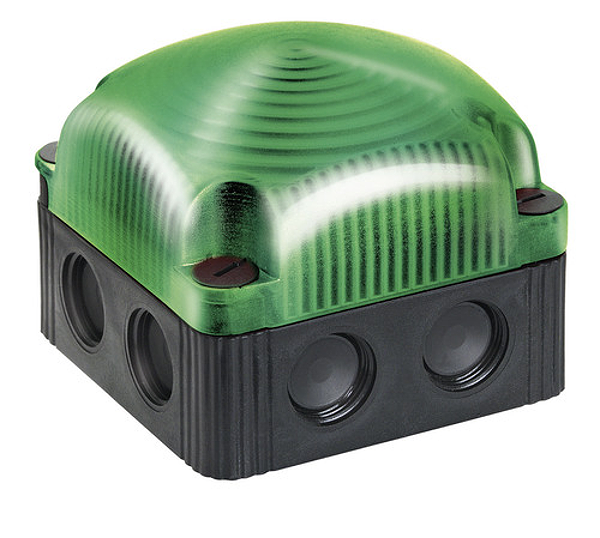

LED Double Flash Beacon BWM 24VDC GN
LED Double flash beacon in attractive quadratic form. Intense double flash with low power consumption. Innovative connector to create traffic light combinations. Thread/membrane combination keeps cabling requirements to a minimum
Length: | 85 mm |
Width: | 85 mm |
Height: | 72 mm |
Materials: | PC PP-GF |
Dome colour: | Green |
Housing colour: | Black |
Protection category: | IP66 IP67 |
Connection: | Screw terminals |
cross-sectional area maximum: | 1,50mm² / 16AWG |
Cable entry: | Membrane grommet |
Cable entry minimum: | d = 1 mm d = 6 mm |
Cable entry maximum: | d = 12 mm d = 9 mm |
Type of fixing: | Base mounting Wall mounting |
Working temperature minimum: | -25°C |
Working temperature maximum: | +50°C |
Weight with packaging: | 177 g |
Product weight: | 177 g |
Operating voltage: | 24V |
Operating voltage type: | DC |
Operating voltage tolerance: | +/- 10% |
Rated operational voltage: | 24 VDC |
Rated operational current: | 80 mA |
Rated inrush current: | 500 mA |
Protection class: | Protection class 2 |
Pollution degree: | 3 |
Light source: | LED |
Light colour: | Green |
Optical signal image: | Double flash |
Flash frequency: | 1 Hz |
Service life optical: | 50,000 h maximum |
