84580068

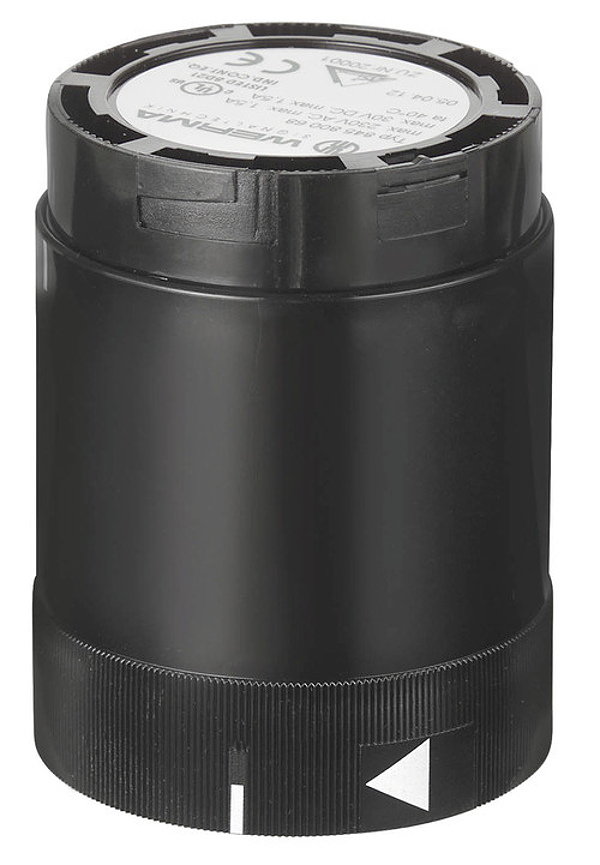

AS-Interface Module BK
Standard Slave with 31 addresses. Max. 4 signal elements possible. Voltage supply switchable from internal bus supply to additional, external voltage supply. LEDs indicate current status
Height: | 67 mm |
Diameter: | 60 mm |
Materials: | PC |
Dome colour: | Black |
Protection category: | IP54 |
Working temperature minimum: | -20°C |
Working temperature maximum: | +50°C |
UL Type Rating: | Type 12 |
Weight with packaging: | 74 g |
Product weight: | 60 g |
Operating voltage: | 18,5 - 31,6V (ASI) |
Rated operational current: | 50 mA |
Protection class: | Protection class 2 |
Pollution degree: | 3 |
AS-i Slave Type: | Standard |
AS-i Profile: | S-8.F |
