Produkt
Werma
83015254
Poproś o ofertę
Prawa autorskie do obrazu: Werma

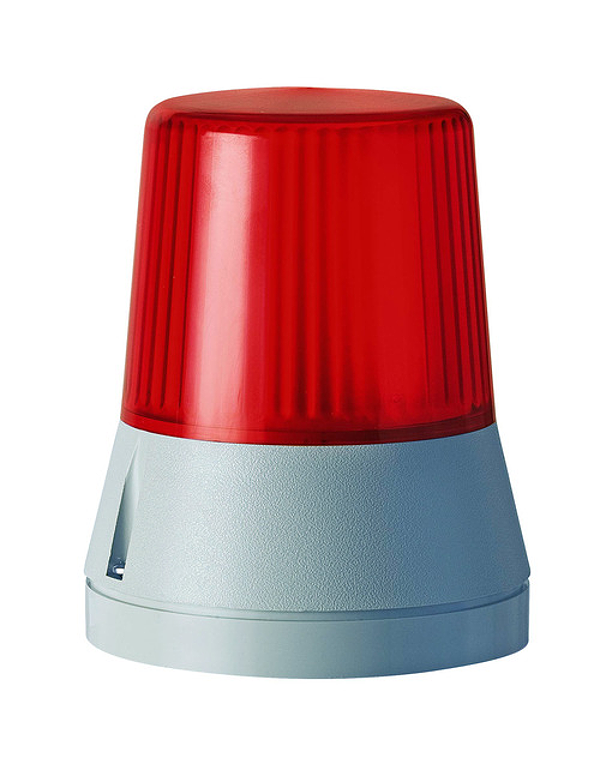

Werma 83015254
Flashing Beacon BM 12VDC RD
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Height: | 133 mm |
| Diameter: | 108 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Red |
| Housing colour: | Grey |
| Protection category: | IP54 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 2,50mm² / 14AWG |
| Cable entry: | Rubber pinch |
| Cable entry minimum: | d = 5 mm |
| Cable entry maximum: | d = 7 mm |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +40°C |
| Weight with packaging: | 305 g |
| Product weight: | 215 g |
| Operating voltage: | 12V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 12 VDC |
| Rated operational current: | 350 mA |
| Rated inrush current: | 300 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Light source: | Xenon |
| Light colour: | Red |
| Optical signal image: | Flash |
| Flash frequency: | 1 Hz |
| Flash output: | 5 J |
| Service life optical: | 4 million flashes minimum |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
