82620000

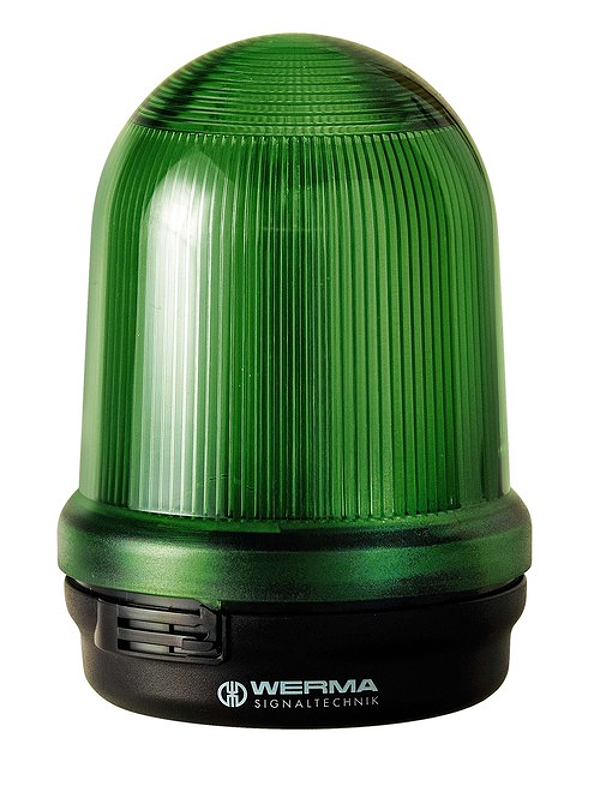

Permanent Beacon BM 12-230VAC/DC GN
Removal of the lens only possible with tools
Height: | 137 mm |
Diameter: | 98 mm |
Materials: | PC PC/ABS |
Dome colour: | Green |
Housing colour: | Black |
Protection category: | IP65 |
Connection: | Insulation-displacement contac |
cross-sectional area maximum: | 1,50mm² / 16AWG |
Cable entry: | Rubber pinch |
Cable entry minimum: | d = 5 mm |
Cable entry maximum: | d = 7 mm |
Type of fixing: | Base mounting |
Working temperature minimum: | -20°C |
Working temperature maximum: | +50°C |
UL Type Rating: | Type 12 |
Weight with packaging: | 235 g |
Product weight: | 180 g |
Operating voltage: | 12-230V |
Operating voltage type: | AC/DC |
Protection class: | Protection class 2 |
Pollution degree: | 3 |
Overvoltage category: | II |
Isolation voltage: | Ui = 250V; Uimp = 2.500V |
Light colour: | Green |
Service life optical: | depends on bulb |
