Produkt
Werma
80210055
Poproś o ofertę
Prawa autorskie do obrazu: Werma

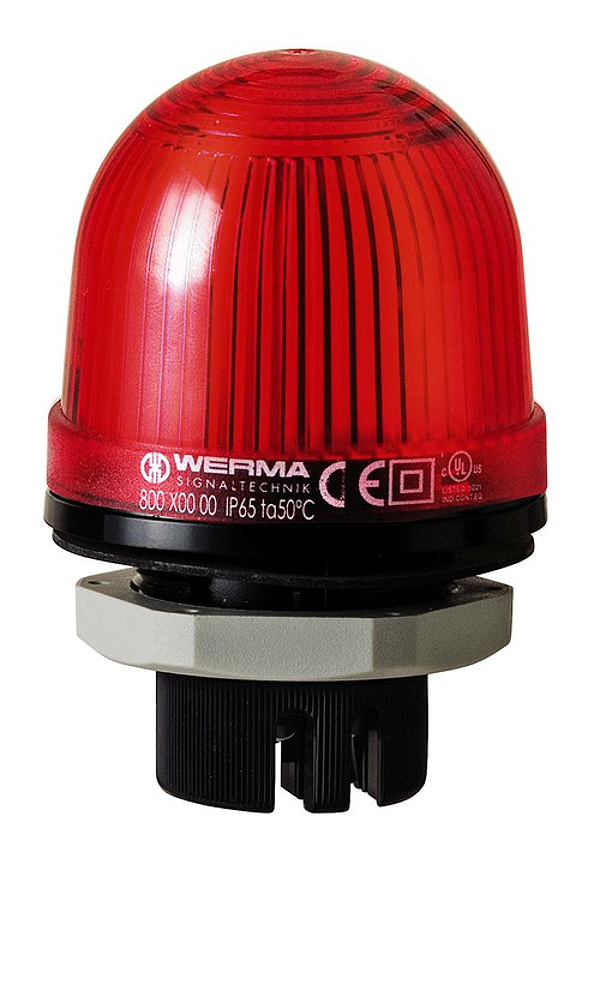

Werma 80210055
Flashing Beacon EM 24VDC RD
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Extremely bright Xenon flash. With anti-twist device (as accessory). Available with tube adaptor as free-standing beacon
Parametry techniczne
| Height: | 85 mm |
| Diameter: | 57 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Red |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Through hole |
| Cable entry maximum: | d = 9 mm |
| Tension relief: | Present (conforms to VDI) |
| Type of fixing: | Built-in mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 95 g |
| Product weight: | 77 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 100 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 In the connection area: 2 |
| Light source: | Xenon |
| Light colour: | Red |
| Optical signal image: | Flash |
| Flash frequency: | 0.75 Hz |
| Flash output: | 1 J |
| Service life optical: | 4 million flashes minimum |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
