69825075
K37 plug EM 24VAC/DC BU/GN/YE/RD

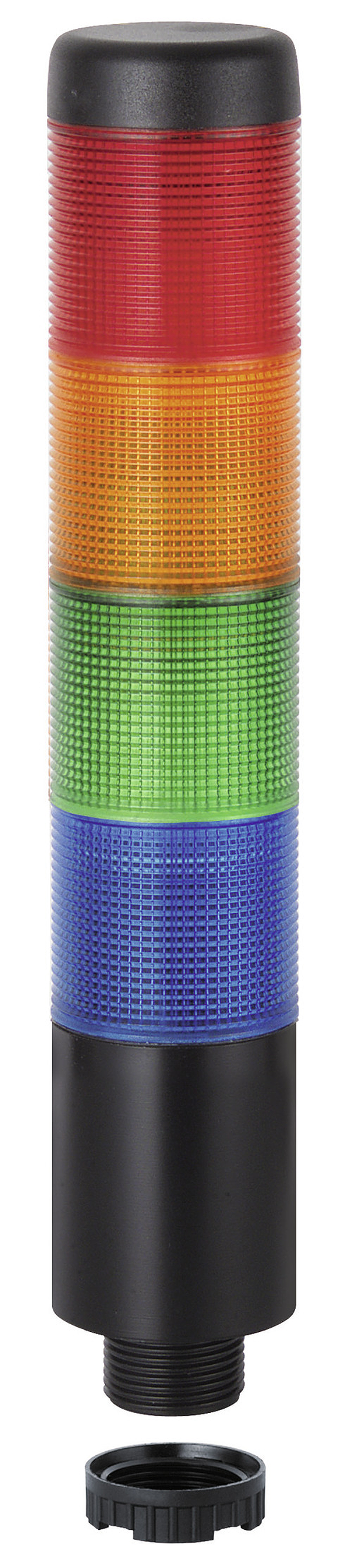

Pre-assembled signal tower with max. 5 tiers with or without buzzer. LED permanent light. Available with M12 plug or cable connection. Also available in metal finish and clear lens
Height: | 209 mm |
Diameter: | 38 mm |
Materials: | PC |
Dome colour: | Blue Green Red Yellow |
Housing colour: | Black |
Protection category: | IP65 |
Connection: | M12 plug 8-pole |
Cable entry: | Membrane grommet |
Cable entry minimum: | d = 1 mm |
Cable entry maximum: | d = 9 mm |
Tension relief: | Pull-out protection |
Type of fixing: | Built-in mounting |
Working temperature minimum: | -20°C |
Working temperature maximum: | +50°C |
UL Type Rating: | Type 12 Type 4X |
Weight with packaging: | 154 g |
Product weight: | 100 g |
Operating voltage: | 24V |
Operating voltage type: | AC/DC |
Operating voltage frequency: | 50Hz |
Operating voltage tolerance: | +/- 10% |
Rated operational voltage: | 24 VDC |
Rated operational current: | 135 mA |
Rated inrush current: | 500 mA |
Protection class: | Protection class 2 |
Pollution degree: | 3 In the connection area: 2 |
Light source: | LED |
Light colour: | Blue Green Red Yellow |
Optical signal image: | Permanent |
Service life optical: | 50,000 h maximum |
