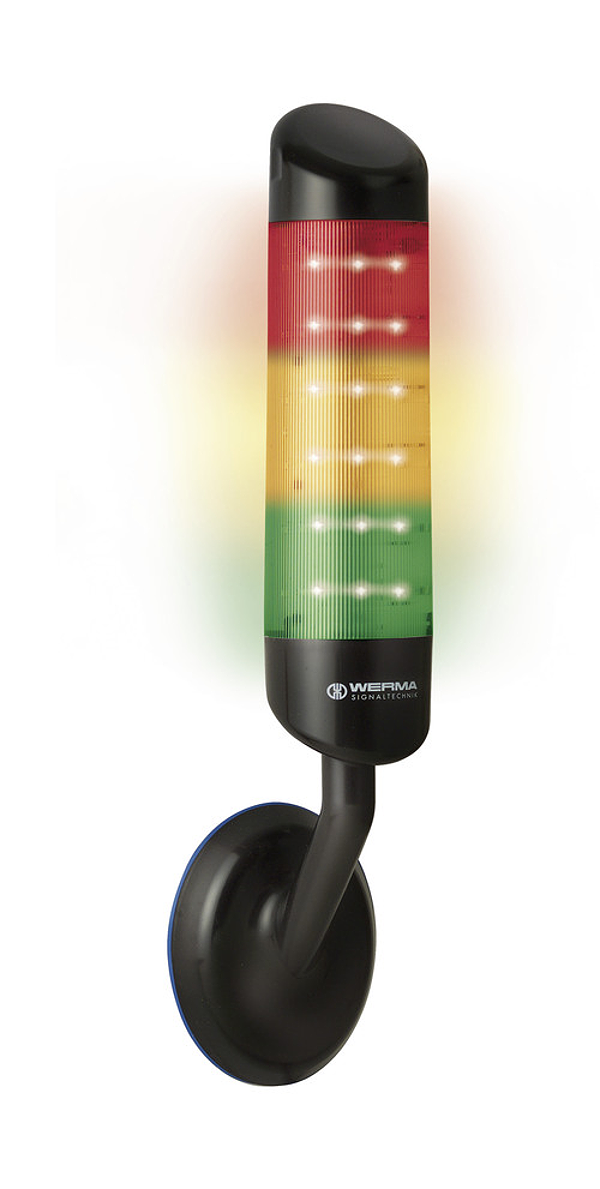

Werma 69530055
CleanSIGN WM Contin. tone 24VDC GN/YE/RD
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
LED Signal Tower for use in cleanroom applications (Fraunhofer IPA, approval). Permanent light in red, yellow and green (SMD technology). Integrated, high-output buzzer (85 dB)
Parametry techniczne
| Length: | 125 mm |
| Width: | 112 mm |
| Height: | 485 mm |
| Diameter: | 76 mm |
| Materials: | PA |
| Dome colour: | Clear |
| Housing colour: | Black |
| Protection category: | IP67 IP69K |
| Connection: | Cable |
| Cable length: | 2500 mm |
| Type of fixing: | Wall mounting |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 720 g |
| Product weight: | 557 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 380 mA |
| Rated inrush current: | 450 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Light source: | LED |
| Light colour: | Green Red Yellow |
| Optical signal image: | Permanent |
| Service life optical: | 50,000 h maximum |
| Volume/dB(max) at 1m distance: | 85,0 dB (A) |
| Acoustic signal image: | Continuous tone |
| Audio frequency: | 2400 Hz |
| Acoustic service life: | 5,000 h minimum |
