69500055

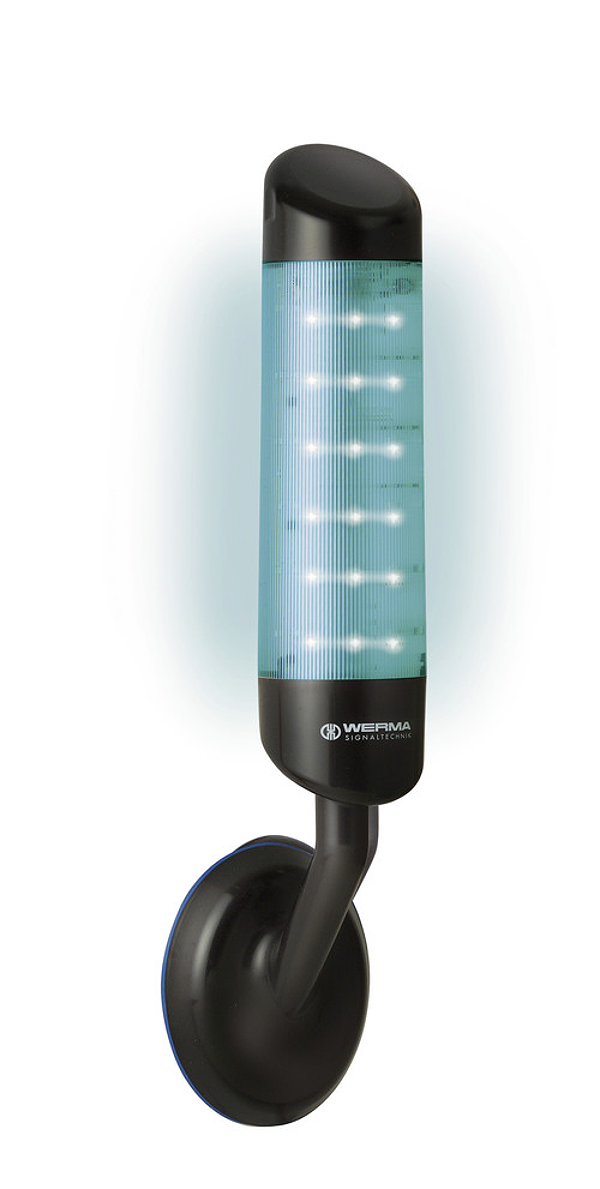

CleanSIGN WM Contin. tone 24VDC MC
LED Signal Tower for use in cleanroom applications (Fraunhofer IPA, approval) and the food industry. Permanent light and additional light effects. 7 colours slectable. Colour distribution can be set and adjusted via switch as required. Complete illumination in one colour possible (can be triggered, externally). Integrated, high-output buzzer (85 dB)
Length: | 125 mm |
Width: | 112 mm |
Height: | 485 mm |
Diameter: | 76 mm |
Materials: | PA |
Dome colour: | Clear |
Housing colour: | Black |
Protection category: | IP67 IP69K |
Connection: | Screw terminals |
cross-sectional area maximum: | 1,50mm² / 16AWG |
Type of fixing: | Wall mounting |
Working temperature minimum: | -30°C |
Working temperature maximum: | +50°C |
Weight with packaging: | 622 g |
Product weight: | 451 g |
Operating voltage: | 24V |
Operating voltage type: | DC |
Operating voltage tolerance: | +/- 10% |
Rated operational voltage: | 24 VDC |
Rated operational current: | 270 mA |
Rated inrush current: | 1.000 mA |
Protection class: | Protection class 2 |
Pollution degree: | 3 |
Light source: | LED |
Light colour: | MC 7 colours |
Optical signal image: | Blink EVS Permanent |
Blink frequency (Hz): | 1 Hz |
Service life optical: | 50,000 h maximum |
Volume/dB(max) at 1m distance: | 85,0 dB (A) |
Acoustic signal image: | Continuous tone |
Audio frequency: | 2400 Hz |
Acoustic service life: | 5,000 h minimum |
