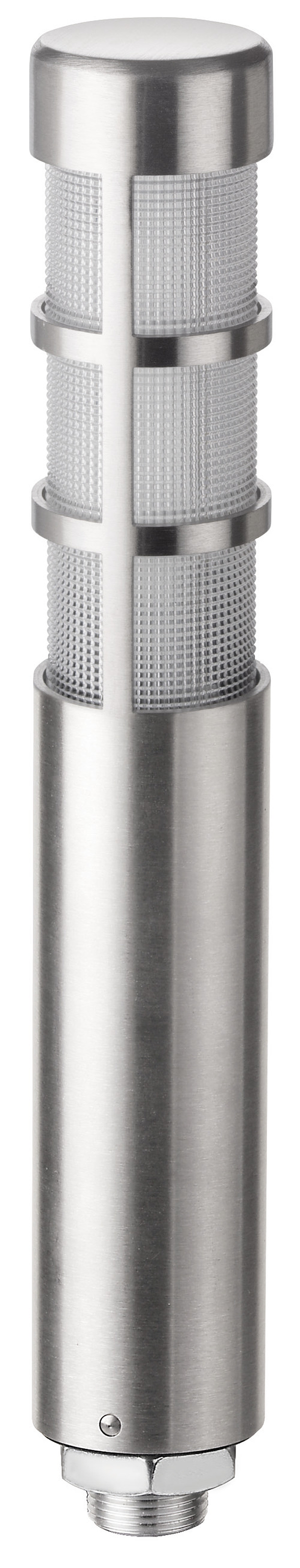

Werma 69400055
Signal tower deSIGN42 EM 24VDC GN/YE/RD
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Robust signal tower with high-grade stainless steel housing. Clear lenses ensure signal effect even in direct sunlight. Three colour combinations
Parametry techniczne
| Height: | 255 mm |
| Diameter: | 42 mm |
| Materials: | PC Stainless steel |
| Dome colour: | Clear |
| Housing colour: | Silver |
| Protection category: | IP65 |
| Connection: | Cable |
| Cable length: | 2000 mm |
| Type of fixing: | Built-in mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 834 g |
| Product weight: | 753 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 50 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 In the connection area: 2 |
| Light source: | LED |
| Light colour: | Green Red Yellow |
| Optical signal image: | Permanent |
| Service life optical: | 50,000 h maximum |
