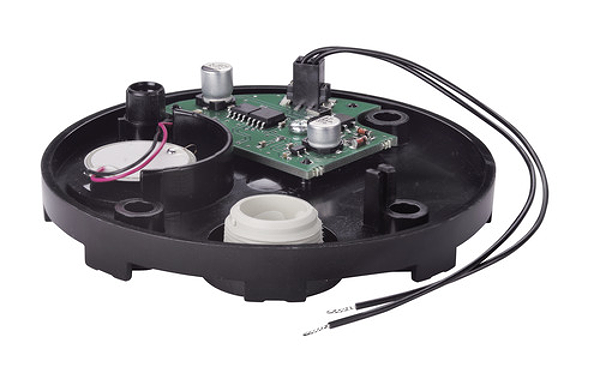

Werma 65600055
Buzzer module BM Contin. tone 24VDC
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Powerful buzzer module - up to 85 dB
Parametry techniczne
| Height: | 19 mm |
| Diameter: | 85 mm |
| Materials: | PC/ABS |
| Housing colour: | Black |
| Protection category: | IP66 |
| Connection: | Cable |
| cross-sectional area minimum: | 0,14mm² / 26AWG |
| cross-sectional area maximum: | 0,50mm² / 20AWG |
| Cable entry: | Membrane grommet |
| Cable entry minimum: | d = 1 mm |
| Cable entry maximum: | d = 9 mm |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 56 g |
| Product weight: | 30 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 40 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Volume/dB(max) at 1m distance: | 85,0 dB (A) |
| Acoustic signal image: | Continuous tone |
| Audio frequency: | 4400 Hz |
| Acoustic service life: | 5,000 h minimum |
