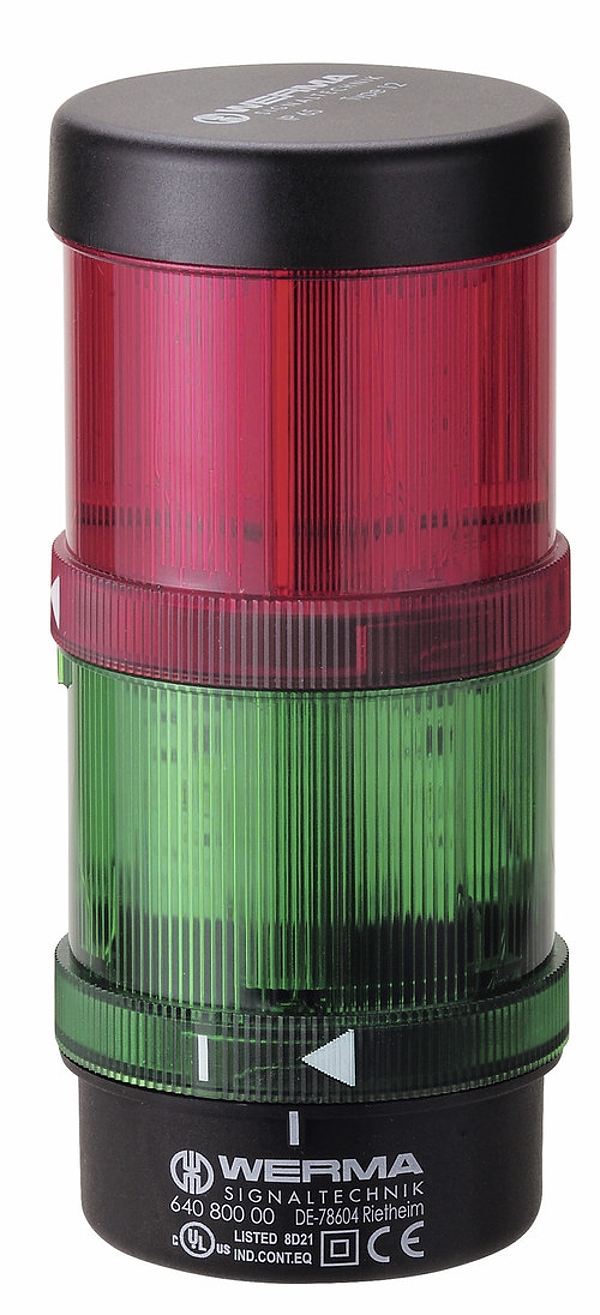

Werma 64924004
Signal tower KS71 BWM 24VAC/DC GN/RD
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
High runner product under one part number. Reduction of variants. At any time possible to retrofit an element (e.g. audible element)
Parametry techniczne
| Height: | 270 mm |
| Diameter: | 70 mm |
| Materials: | PA-GF PC |
| Dome colour: | Green Red |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Spring-type terminal |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Through hole |
| Cable entry maximum: | d = 11 mm |
| Tension relief: | Not present |
| Type of fixing: | Base mounting Wall mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 227 g |
| Product weight: | 199 g |
| Operating voltage: | 24V |
| Operating voltage type: | AC/DC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 60 mA |
| Rated inrush current: | <500mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Light source: | LED |
| Light colour: | Green Red |
| Optical signal image: | Permanent |
| Service life optical: | 50,000 h minimum |
