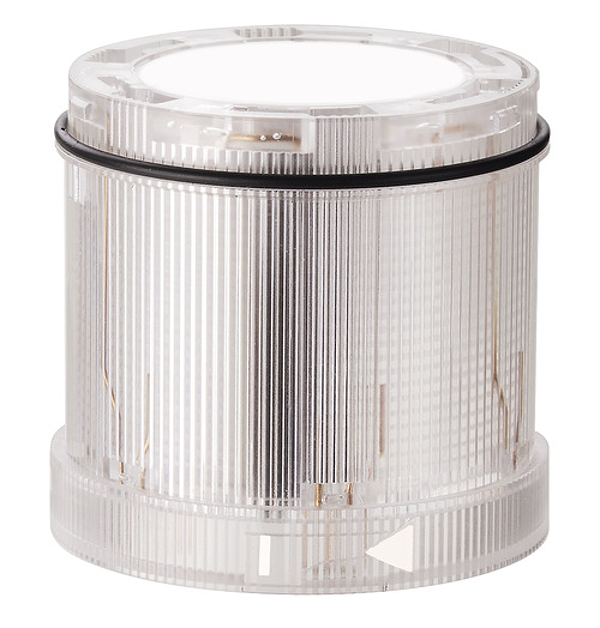

Werma 64744055
TwinFLASH 24VDC CL
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
The TwinFLASH light element combines two light effect functions, flashing light and EVS) in one element. For the signal tower range KombiSIGN 72 in ClassicLOOK and DesignLOOK. Order the required terminal element separately please
Parametry techniczne
| Height: | 66 mm |
| Diameter: | 70 mm |
| Materials: | PC |
| Dome colour: | Clear |
| Protection category: | IP65 |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +60°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 91 g |
| Product weight: | 77 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 80 mA |
| Rated inrush current: | 750 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Light source: | LED |
| Light colour: | White |
| Optical signal image: | EVS Flash TwinFlash |
| Flash frequency: | 1 Hz |
| Service life optical: | 50,000 h maximum |
