64722055

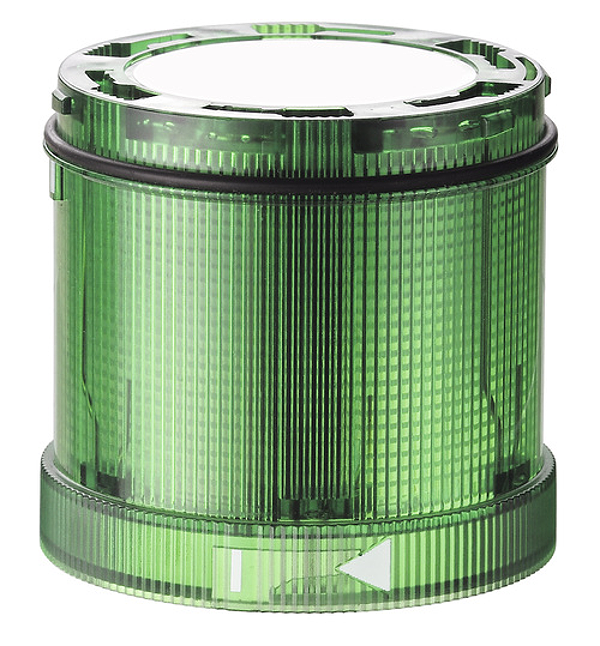

TwinFLASH Classic 24VDC GN
The TwinFLASH light element combines two light effect functions, flashing light and EVS) in one element. Suitable for modular signal towers KombiSIGN 71 and KombiSIGN 72 in. ClassicLOOK. Order the required terminal element separately please
Height: | 66 mm |
Diameter: | 70 mm |
Materials: | PC |
Dome colour: | Green |
Protection category: | IP65 |
Working temperature minimum: | -30°C |
Working temperature maximum: | +60°C |
UL Type Rating: | Type 12 |
Weight with packaging: | 91 g |
Product weight: | 77 g |
Operating voltage: | 24V |
Operating voltage type: | DC |
Operating voltage tolerance: | +/- 10% |
Rated operational voltage: | 24 VDC |
Rated operational current: | 80 mA |
Rated inrush current: | 750 mA |
Protection class: | Protection class 2 |
Pollution degree: | 3 |
Light source: | LED |
Light colour: | Green |
Optical signal image: | EVS Flash TwinFlash |
Flash frequency: | 1 Hz |
Service life optical: | 50,000 h maximum |
