Produkt
Werma
64580075
Poproś o ofertę
Prawa autorskie do obrazu: Werma

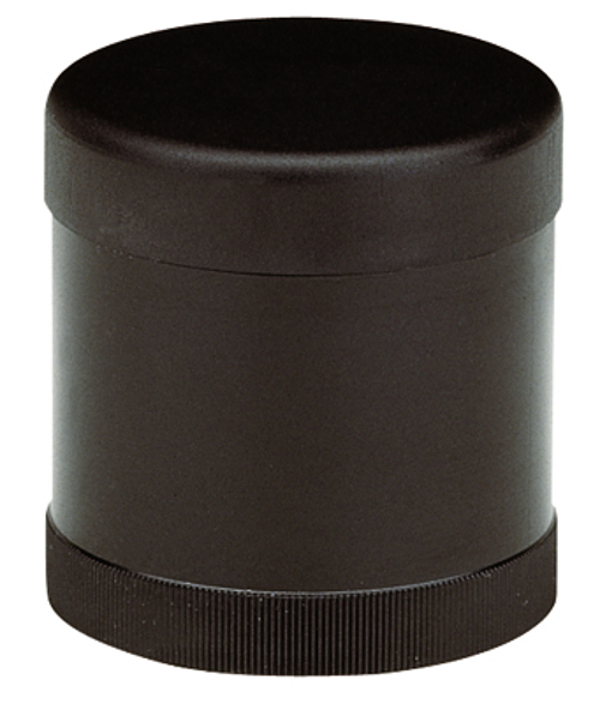

Werma 64580075
Buzzer element contin/pulse 24VAC/DC BK
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Summerelement Dauer/Puls 24VAC/DC BK
Parametry techniczne
| Height: | 72 mm |
| Diameter: | 70 mm |
| Materials: | PC |
| Housing colour: | Black |
| Housing colour: | Black |
| Protection category: | IP65 |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Product weight: | 73 g |
| Product weight: | 73 g |
| Operating voltage: | 24V |
| Operating voltage type: | AC/DC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 11 mA |
| Rated inrush current: | 100 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Volume/dB(max) at 1m distance: | 85,0 dB (A) |
| Acoustic signal image: | Continuous tone Pulse tone |
| Audio frequency: | 3500 Hz |
| Acoustic service life: | 5,000 h minimum |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
