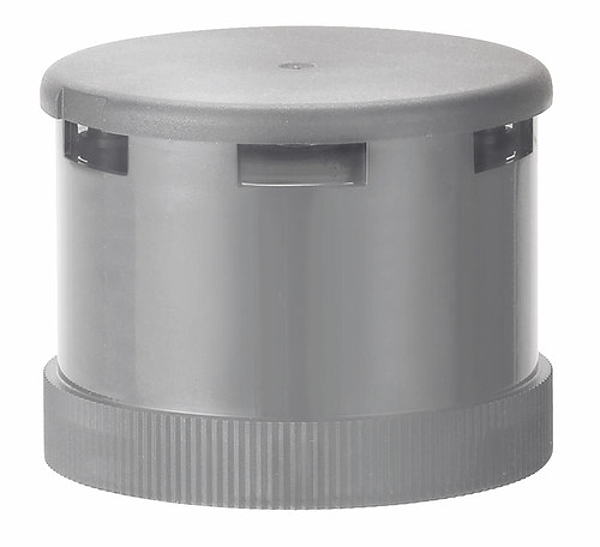

Werma 64577075
Siren element contin/altern. 24VAC/DC GY
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Audible signal module with 2 tones to choose from. Continuous tone und alternating tone are adjustable via dip switch. Suitable for modular signal towers KombiSIGN 71 and KombiSIGN 72 in. DesignLOOK. Order the required terminal element separately please
Parametry techniczne
| Height: | 54 mm |
| Diameter: | 70 mm |
| Materials: | PC |
| Housing colour: | Grey |
| Protection category: | IP65 |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 89 g |
| Product weight: | 74 g |
| Operating voltage: | 24V |
| Operating voltage type: | AC/DC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 40 mA |
| Rated inrush current: | 100 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Volume/dB(max) at 1m distance: | 105,0 dB (A) |
| Acoustic signal image: | Alternating tone Continuous tone |
| Number of tones: | 2 tone |
| Volume adjustable: | Switch |
| Volume adjustment range: | ca. 95 / 105,0 dB (A) |
| Audio frequency: | 3000 Hz |
| Acoustic service life: | 5,000 h minimum |
