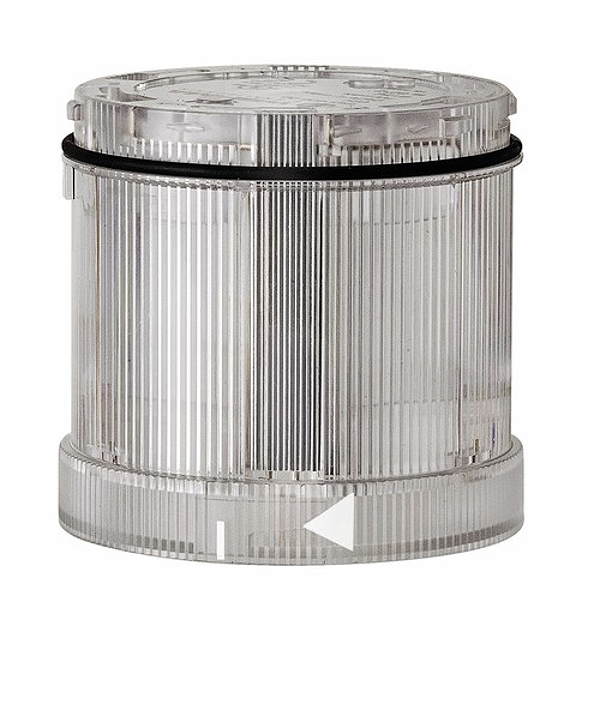

Werma 64445055
LED Perm. light multicolour 24VDC MC
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Seven colours in one beacon. Different colours can be triggered via the pins in the terminal, element. Positive and negative control logic. The three basic colours (red/yellow/green) can be triggered using only, two PLC outputs. High light intensity
Parametry techniczne
| Height: | 66 mm |
| Diameter: | 70 mm |
| Materials: | PC |
| Dome colour: | Clear |
| Protection category: | IP65 |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 81 g |
| Product weight: | 67 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 120 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Light source: | LED |
| Light colour: | MC 7 colours |
| Optical signal image: | Permanent |
| Service life optical: | 50,000 h maximum |
