64084000

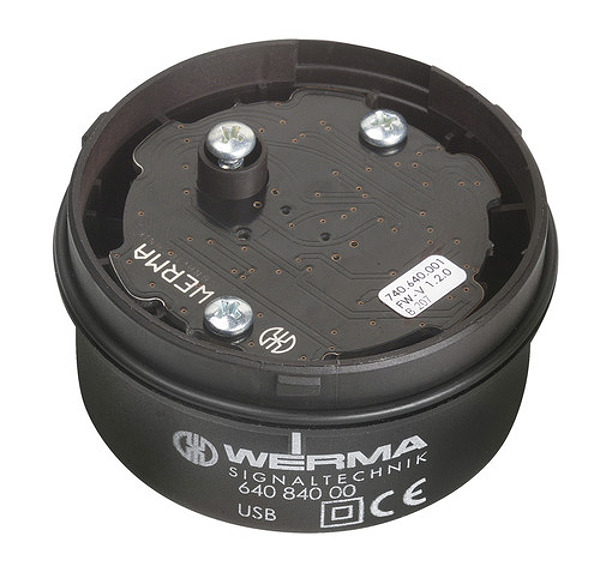

USB-Terminal element RM 5VDC BK
Direct triggering of signal tower elements via USB Interface. Actuation via a DLL (Dynamic Link Library) or VCP (Virtual-COM-Port). Simple integration into any customer-specific software. No additional power supply or hardware necessary. Up to five signal towers with a maximum of five elements each can be, connected
Length: | 70 mm |
Width: | 70 mm |
Height: | 41 mm |
Diameter: | 70 mm |
Materials: | PA-GF |
Housing colour: | Black |
Protection category: | IP65 |
Connection: | USB |
Cable entry: | Through hole |
Cable entry maximum: | d = 14 mm |
Type of fixing: | Tube mounting |
Working temperature minimum: | -20°C |
Working temperature maximum: | +50°C |
Weight with packaging: | 185 g |
Product weight: | 141 g |
Operating voltage: | 5V (USB) |
Operating voltage type: | DC |
Operating voltage tolerance: | +/- 0% |
Rated operational voltage: | 5 VDC |
Rated operational current: | 500 mA |
Protection class: | Protection class 2 |
Pollution degree: | 3 |
Request to external PSU: | SELV/PELV |
Current carrying capacity: | 90MA |
Service life optical: | 50,000 h maximum |
