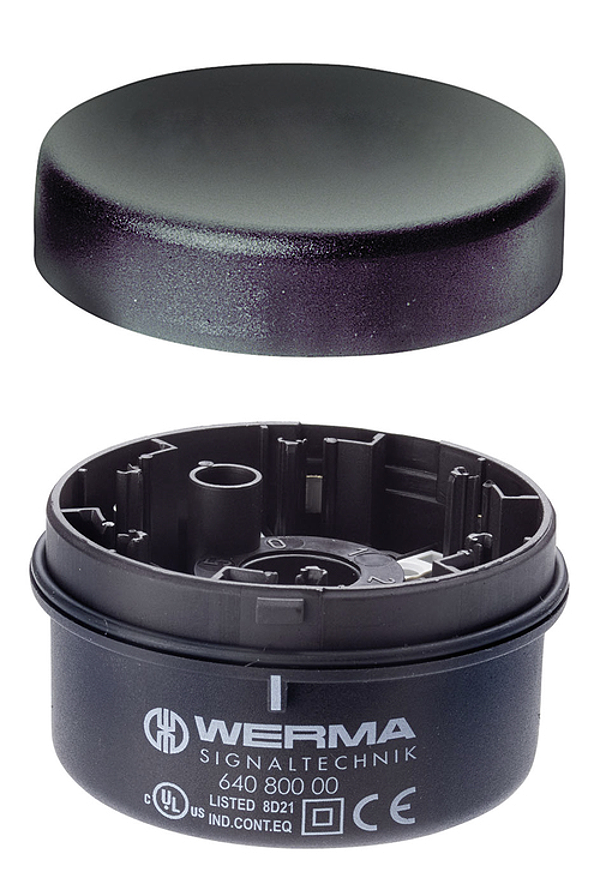

Werma 64081000
Terminal element RM 12-230VAC/DC BK
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Terminal element for tube mounting (tube Ø 25 mm). Suitable for modular signal towers KombiSIGN 71 and KombiSIGN 72 in. ClassicLOOK. Order accessories separately please
Parametry techniczne
| Height: | 36 mm |
| Diameter: | 70 mm |
| Materials: | PA-GF PC |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Spring-type terminal |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Through hole |
| Cable entry maximum: | d = 11 mm |
| Type of fixing: | Tube mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 98 g |
| Product weight: | 84 g |
| Operating voltage: | 12-230V |
| Operating voltage type: | AC/DC |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
