63930101

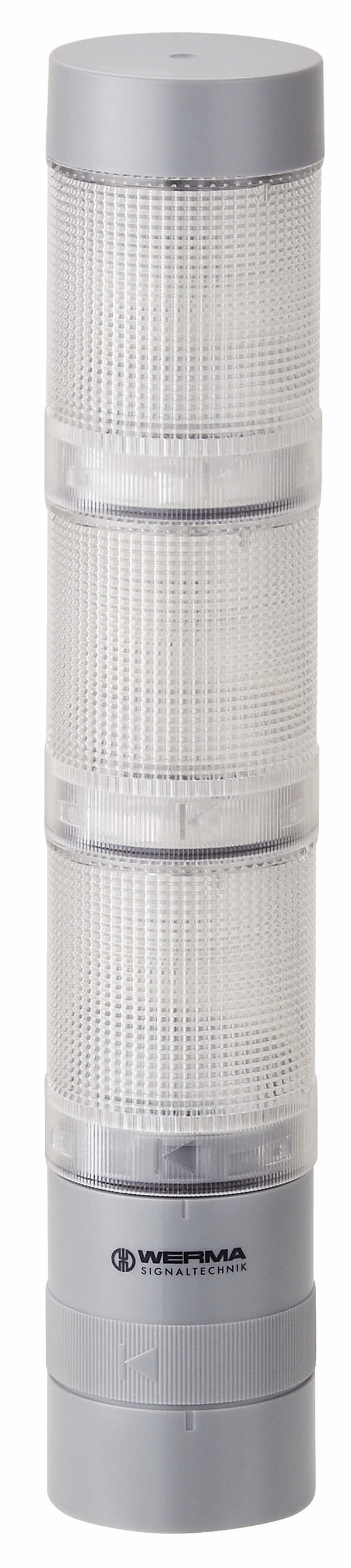

KS40 Design BWM 24VAC/DC GN/YE/RD
High runner product under one part number. Reduction of variants. At any time possible to retrofit an element (e.g. audible element)
Diameter: | 40 mm |
Materials: | PC |
Dome colour: | Clear |
Housing colour: | Silver |
Protection category: | IP66 IP69K |
Connection: | Push-in terminal |
cross-sectional area maximum: | 1,50mm² / 16AWG |
Cable entry: | Through hole |
Cable entry maximum: | d = 9 mm |
Tension relief: | Not present |
Type of fixing: | Base mounting Wall mounting |
Working temperature minimum: | -30°C |
Working temperature maximum: | +60°C |
Weight with packaging: | 210 g |
Product weight: | 129 g |
Operating voltage: | 24V |
Operating voltage type: | AC/DC |
Operating voltage frequency: | 50Hz |
Operating voltage tolerance: | +/- 10% |
Rated operational voltage: | 24 VDC |
Rated operational current: | 40 mA |
Rated inrush current: | 500 mA |
Protection class: | Protection class 3 |
Pollution degree: | 3 |
Request to external PSU: | SELV/PELV |
Light source: | LED |
Light colour: | Green Red Yellow |
Optical signal image: | Blink Permanent |
Blink frequency (Hz): | 1 Hz |
Service life optical: | 50,000 h maximum |
