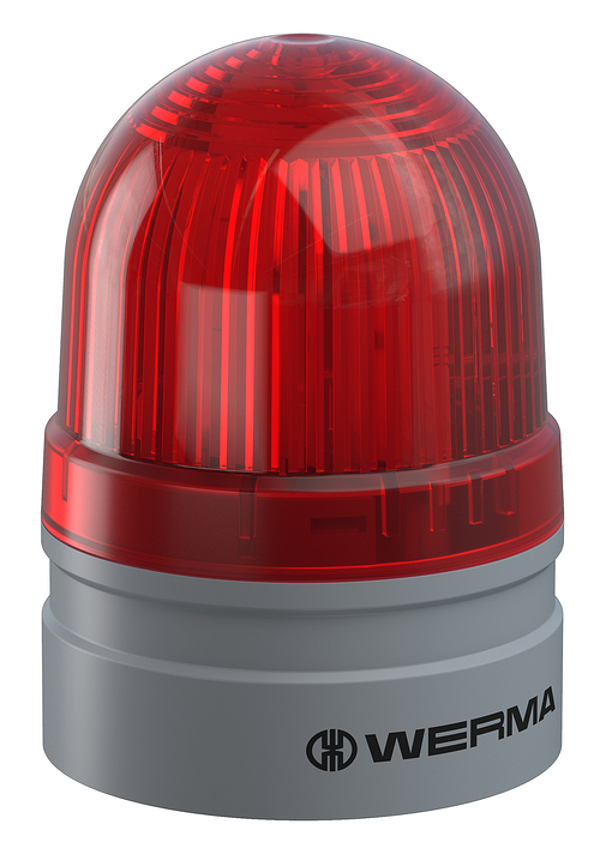

Werma 26011060
Mini TwinLIGHT 115-230VAC RD
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Height: | 85 mm |
| Diameter: | 62 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Red |
| Housing colour: | Grey |
| Protection category: | IP66 |
| Connection: | Push-in terminal |
| cross-sectional area minimum: | 0,25mm² / 24AWG |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +60°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 92 g |
| Product weight: | 71 g |
| Operating voltage: | 115-230V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 50Hz at 230V 60Hz at 115V |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated operational current: | 40 mA |
| Rated inrush current: | 2500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Light source: | LED |
| Light colour: | Red |
| Optical signal image: | TwinLight |
| Blink frequency (Hz): | 1 Hz |
| Service life optical: | 50,000 h minimum |
