Werma
16170070
Poproś o ofertę
Prawa autorskie do obrazu: Werma

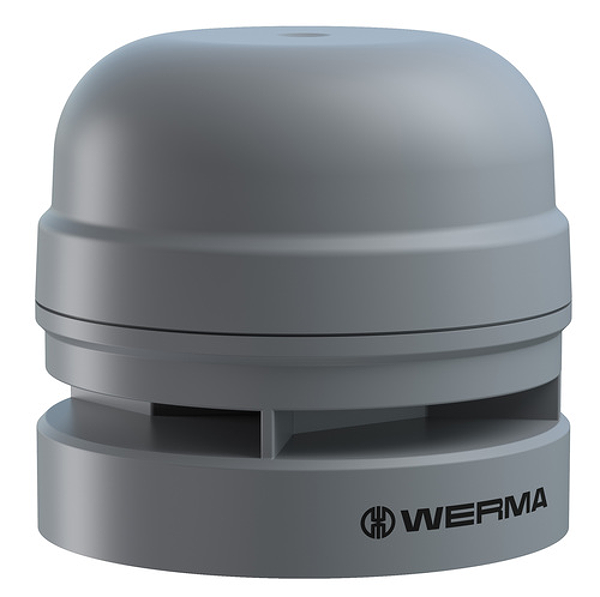

Werma 16170070
Midi Sounder 12/24VAC/DC GY
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Height: | 78 mm |
| Diameter: | 85 mm |
| Materials: | PC PC/ABS |
| Housing colour: | Grey |
| Protection category: | IP66 |
| Connection: | Push-in terminal |
| cross-sectional area minimum: | 0,25mm² / 24AWG |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +60°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 178 g |
| Product weight: | 140 g |
| Operating voltage: | 12V 24V |
| Operating voltage type: | AC/DC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 12 VDC |
| Rated operational current: | 135 mA |
| Rated inrush current: | 2,5A |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | III |
| Volume/dB(max) at 1m distance: | 110,0 dB (A) |
| Acoustic signal image: | Multi-tone |
| Number of tones: | 10 tone |
| Audio frequency: | 3300 Hz |
| Acoustic service life: | 5,000 h minimum |
