8690850000

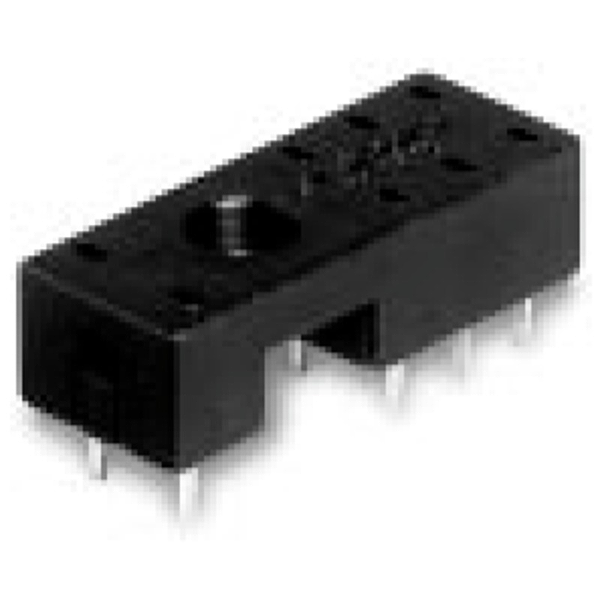

SRC 2CO PCB
Type: | SRC 2CO PCB |
Order No.: | 8690850000 |
Version: | RIDERSERIES RCL, Flange-mounted housing, Number of contacts: 2, CO contact, Continuous current: 12 A, Print connection |
GTIN (EAN): | 4032248361533 |
Qty.: | 100 pc(s). |
Length: | 31 mm |
Length (inches): | 1.22 inch |
Width: | 12.7 mm |
Width (inches): | 0.5 inch |
Height: | 9 mm |
Height (inches): | 0.354 inch |
Net weight: | 4 g |
Humidity: | 40 °C / 93 % rel. humidity, no condensation |
Operating temperature, max.: | 70 °C |
Operating temperature, min.: | -40 °C |
Storage temperature, max.: | 70 °C |
Storage temperature, min.: | -40 °C |
Operating temperature: | -40 °C...70 °C |
Storage temperature: | -40 °C...70 °C |
REACH SVHC: | Lead 7439-92-1 |
Certificate No. (cURus): | E223759 |
Rated switching voltage: | 250 V AC |
Max. switching voltage, AC: | 300 V |
Continuous current: | 12 A |
AC switching capacity (resistive), max.: | 3000 VA |
Contact type: | 2 CO contact |
Colour: | black |
Rated voltage: | 300 V |
Pollution severity: | 2 |
Protection degree: | IP20 |
Standards: | UL508 |
Certificate No. (cURus): | E223759 |
Wire connection method: | Print connection |
Pitch in mm (P): | 5 mm |
ETIM 6.0: | EC001456 |
ETIM 7.0: | EC001456 |
eClass 9.0: | 27-37-16-03 |
eClass 9.1: | 27-37-16-03 |
eClass 10.0: | 27-37-16-03 |
UNSPSC: | 30-21-19-17 |
ROHS: | Conform |
Type: | SRC 2CO PCB |
Order No.: | 8690850000 |
Version: | RIDERSERIES RCL, Flange-mounted housing, Number of contacts: 2, CO contact, Continuous current: 12 A, Print connection |
GTIN (EAN): | 4032248361533 |
Qty.: | 100 pc(s). |
Length: | 31 mm |
Length (inches): | 1.22 inch |
Width: | 12.7 mm |
Width (inches): | 0.5 inch |
Height: | 9 mm |
Height (inches): | 0.354 inch |
Net weight: | 4 g |
Humidity: | 40 °C / 93 % rel. humidity, no condensation |
Operating temperature, max.: | 70 °C |
Operating temperature, min.: | -40 °C |
Storage temperature, max.: | 70 °C |
Storage temperature, min.: | -40 °C |
Operating temperature: | -40 °C...70 °C |
Storage temperature: | -40 °C...70 °C |
REACH SVHC: | Lead 7439-92-1 |
Certificate No. (cURus): | E223759 |
Rated switching voltage: | 250 V AC |
Max. switching voltage, AC: | 300 V |
Continuous current: | 12 A |
AC switching capacity (resistive), max.: | 3000 VA |
Contact type: | 2 CO contact |
Colour: | black |
Rated voltage: | 300 V |
Pollution severity: | 2 |
Protection degree: | IP20 |
Standards: | UL508 |
Certificate No. (cURus): | E223759 |
Wire connection method: | Print connection |
Pitch in mm (P): | 5 mm |
ETIM 6.0: | EC001456 |
ETIM 7.0: | EC001456 |
eClass 9.0: | 27-37-16-03 |
eClass 9.1: | 27-37-16-03 |
eClass 10.0: | 27-37-16-03 |
UNSPSC: | 30-21-19-17 |
ROHS: | Conform |
