Produkt
Weidmueller
1827160000
HDC HB 24 TEK TSS1xM50G
Poproś o ofertę

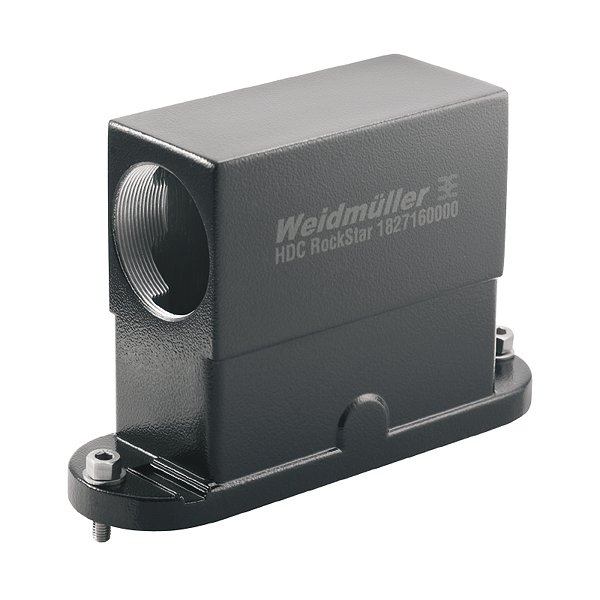

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1827160000
HDC HB 24 TEK TSS1xM50G
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Available until: | 2013-12-31 |
| Type: | HDC HB 24 TEK TSS1xM50G |
| Order No.: | 1827160000 |
| Version: | HDC enclosures, Size: 8, Protection degree: IP68, IP69K, Plug housing, Clamping yoke connection, high, Size of cable entries: M 50 |
| GTIN (EAN): | 4032248332311 |
| Qty.: | 1 pc(s). |
| Width: | 58 |
| Width (inches): | 2.283 inch |
| Height: | 120 mm |
| Height (inches): | 4.724 inch |
| Net weight: | 718 g |
| Limit temperature: | -50 °C ... 125 °C |
| Cable entry: | w. threading |
| Height of housing B: | 120 mm |
| Total length housing: | 184 mm |
| EMC housings: | Yes |
| Housing main material: | diecast aluminium |
| Material of locking element: | Stainless steel, rust-proof |
| Protection degree: | IP68, IP69K |
| Surface finish: | Powder coating |
| Tightening torque: | 6.5 Nm |
| Cable entry: | w. threading |
| Clamp version: | Clamping yoke connection |
| Design: | high |
| Design of housing: | Plug housing |
| Design of locking system: | Clamping yoke connection |
| Internal thread: | M 50 |
| Number of cable entry on top: | 0 |
| Number of cable entry sideways: | 1 |
| Size: | 8 |
| Size of cable entries: | M 50 |
| Suitable for ModuPlug®: | Yes |
| Tightening torque: | 6.5 Nm |
| Top part/bottom part/lid: | upper part |
| Type: | Plug |
| ETIM 6.0: | EC000437 |
| ETIM 7.0: | EC000437 |
| eClass 9.0: | 27-44-02-02 |
| eClass 9.1: | 27-44-02-02 |
| eClass 10.0: | 27-44-02-02 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Available until: | 2013-12-31 |
| Type: | HDC HB 24 TEK TSS1xM50G |
| Order No.: | 1827160000 |
| Version: | HDC enclosures, Size: 8, Protection degree: IP68, IP69K, Plug housing, Clamping yoke connection, high, Size of cable entries: M 50 |
| GTIN (EAN): | 4032248332311 |
| Qty.: | 1 pc(s). |
| Width: | 58 |
| Width (inches): | 2.283 inch |
| Height: | 120 mm |
| Height (inches): | 4.724 inch |
| Net weight: | 718 g |
| Limit temperature: | -50 °C ... 125 °C |
| Cable entry: | w. threading |
| Height of housing B: | 120 mm |
| Total length housing: | 184 mm |
| EMC housings: | Yes |
| Housing main material: | diecast aluminium |
| Material of locking element: | Stainless steel, rust-proof |
| Protection degree: | IP68, IP69K |
| Surface finish: | Powder coating |
| Tightening torque: | 6.5 Nm |
| Cable entry: | w. threading |
| Clamp version: | Clamping yoke connection |
| Design: | high |
| Design of housing: | Plug housing |
| Design of locking system: | Clamping yoke connection |
| Internal thread: | M 50 |
| Number of cable entry on top: | 0 |
| Number of cable entry sideways: | 1 |
| Size: | 8 |
| Size of cable entries: | M 50 |
| Suitable for ModuPlug®: | Yes |
| Tightening torque: | 6.5 Nm |
| Top part/bottom part/lid: | upper part |
| Type: | Plug |
| ETIM 6.0: | EC000437 |
| ETIM 7.0: | EC000437 |
| eClass 9.0: | 27-44-02-02 |
| eClass 9.1: | 27-44-02-02 |
| eClass 10.0: | 27-44-02-02 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,718 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
