Weidmueller 1349840010
PAC-UNIV-HE34-F-1M
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Available until: | 2014-05-20 |
| Type: | PAC-UNIV-HE34-F-1M |
| Order No.: | 1349840010 |

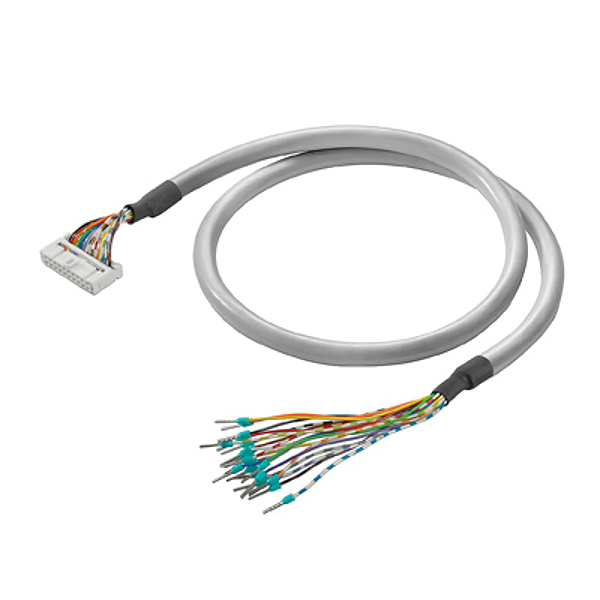

| Version: | Pre-assembled cable, PAC |
| GTIN (EAN): | 4032248161232 |
| Qty.: | 1 pc(s). |
| Net weight: | 42.7 g |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | -10 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -10 °C |
| Operating temperature: | -10...50 °C |
| Storage temperature: | -10...60 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Connector PLC side: | H0.14/10 (FERRULES 0.14mm²) |
| Interface connector: | FLAT CABLE CONECTOR HE10 34P |
| Number of poles, min.: | 34-pole |
| Outer diameter: | 11 ± 1 mm |
| Cable: | Cable LiYY |
| Cable length: | 1 m |
| Material: | PVC |
| Wire cross-section: | 0.14 mm² |
| Rated voltage (text): | ≤ 60 V DC ≤ 25 V AC |
| Permissible current strength per path, max.: | 1 A |
| Total current, max.: | 3 A |
| Resistance: | ≤ 150mΩ/m |
| ETIM 6.0: | EC000237 |
| ETIM 7.0: | EC000237 |
| eClass 9.0: | 27-24-22-20 |
| eClass 9.1: | 27-24-22-20 |
| eClass 10.0: | 27-24-22-20 |
| ROHS: | Conform |
| Available until: | 2014-05-20 |
| Type: | PAC-UNIV-HE34-F-1M |
| Order No.: | 1349840010 |
| Version: | Pre-assembled cable, PAC |
| GTIN (EAN): | 4032248161232 |
| Qty.: | 1 pc(s). |
| Net weight: | 42.7 g |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | -10 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -10 °C |
| Operating temperature: | -10...50 °C |
| Storage temperature: | -10...60 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Connector PLC side: | H0.14/10 (FERRULES 0.14mm²) |
| Interface connector: | FLAT CABLE CONECTOR HE10 34P |
| Number of poles, min.: | 34-pole |
| Outer diameter: | 11 ± 1 mm |
| Cable: | Cable LiYY |
| Cable length: | 1 m |
| Material: | PVC |
| Wire cross-section: | 0.14 mm² |
| Rated voltage (text): | ≤ 60 V DC ≤ 25 V AC |
| Permissible current strength per path, max.: | 1 A |
| Total current, max.: | 3 A |
| Resistance: | ≤ 150mΩ/m |
| ETIM 6.0: | EC000237 |
| ETIM 7.0: | EC000237 |
| eClass 9.0: | 27-24-22-20 |
| eClass 9.1: | 27-24-22-20 |
| eClass 10.0: | 27-24-22-20 |
| ROHS: | Conform |
