Rechner Sensors
KA1427

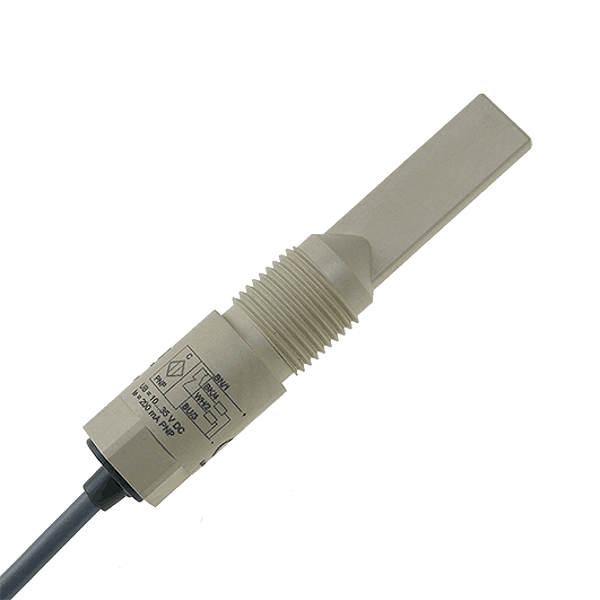

Rechner Sensors KA1427
KAS-80-P50-A-G1/2-LCP-Z05-1-HP
Opis
Capacitive Sensors. SMARTPADDLE. Series 80 – PNP. Housing G1/2“. Housing material: LCP. SIP / CIP 121° C. Special version with flange. Sealing can be made with, a gasket or PTFE-tape (not delivered with the sensor). Leakage control. Overfill prevention. WHG. This capacitive level sensor is pre-adjusted for the detection of bulk materials with a dielectric constant er from 2 to 80. This fully electronic Paddle Sensor has no moving parts and is not subject to wear or tear and thus there is no down time due to false detections caused by material build-up. Advantages SMARTPADDLE:. Sensitivity is pre-adjusted Mount and Go. Measurement is independent of the mounting position. Permitted pressure on the active area: 10 bar. Process connection G 1/2”
Pliki do pobrania
Parametry techniczne
| Thread / Process connection: | G 1/2" |
| Housing material active surface: | LCP |
| Housing material: | LCP |
| Housing material lid: | PA |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 2 x 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 2 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Sensitivity: | Er 2…80 |
| Pressure: | 10 bar |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | produktberuehrend-mediumabhaengig-einstellbar |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Cable length: | 5 m |
| Connection: | PVC-Kabel, 4 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 529,1 Jahre |
| WHG certification: | Auf Anfrage |
