Produkt
Rechner Sensors
KA1342
Poproś o ofertę

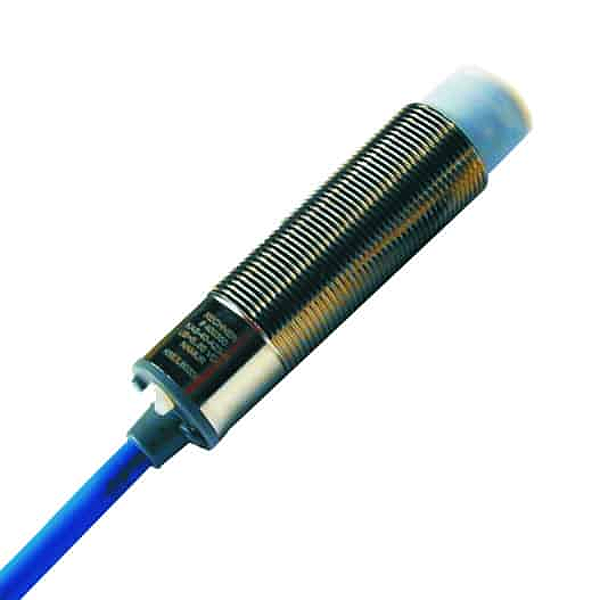

Prawa autorskie do obrazu: Rechner Sensors
Rechner Sensors KA1342
KAS-40-A23-IL4, ATEX
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Capacitive Sensors with Analogue Output. Series 40 – NAMUR EN 60947-5-6. Housing M 18 x 1. For use in areas with the risk of gas explosion, zone 0. Housing material: Brass. Operating range 0…10 mm. Output current 4…20 mA. DMT 03 ATEX E 048 IECEx BVS 07.0031. II 1G Ex ia IIC T1-T6 Ga Ex ia IIC T1-T6 Ga
Pliki do pobrania
Parametry techniczne
| Thread / Process connection: | M 18 x 1 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Messing |
| Electrical version: | 2-Leiter DC |
| Permitted residual ripple max.: | 5% |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-6, EN 60947-5-7 |
| Selfinductance (L): | 0,2 mH |
| Selfcapacitance (C): | 250 nF |
| Operating current active surface free: | ≤ 4 mA |
| Operating current active surface covered: | ≥ 20 mA |
| Load resistance (RL): | ≤ 500 Ω |
| Linear range: | 1…8 mm |
| Operating range: | 0…10 mm |
| Operating voltage: | 15…35 V DC, Ui = 27 V DC |
| Permitted ambient temperature min.: | -20 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | NAMUR / Analog |
| Output signal: | 4 – 20 mA |
| Cable length: | 2 m |
| Connection: | PUR-Kabel, 2 x 0,75 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| ATEX product marking gas: | Ex II 1G Ex ia Ex IIC T1 – T6 Ga |
| Certified Zones ATEX: | 1G |
| IECEX product marking gas: | Ex ia IIC T1 – T6 Ga |
| MTTF: | 1060,35 Jahre |
| WHG certification: | Auf Anfrage |
