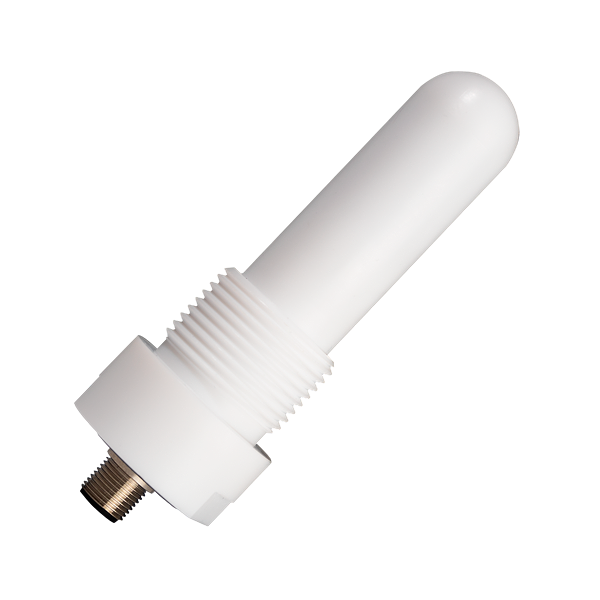

Rechner Sensors KA0642
KAS-80-26/113-A-G1-PTFE-Y5-1-HP
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Whitworth G. 1-Zoll / inch (1zoll inch 1″). G = Whitworth Pipe Thread (BSP – British Standard Pipe). Capacitive Sensors – S26. Series 80 – PNP. Type of construction G 1”. Housing material: PTFE. With flange connector M 12 x 1. Capacitive Sensors S26 with hemispherical active surface for level control of products with a dielectric constant εr as of 1,1. Products can be:. Bulk material, like plastic granules, powder, cereals, etc. Liquids, like water, juice, wine, oil, chemicals or pharmaceutical solutions and much more. Pastes in the food processing industry, liquid glue, or resins, etc.
Pliki do pobrania
Parametry techniczne
| Thread / Process connection: | G 1" |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | PTFE (FDA 21 CFR 177.1550) |
| Housing material lid: | PA |
| Electrical version: | 4-Polig DC |
| Operating current (Ie): | 2 x 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 50 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | produktberuehrend-mediumabhaengig-einstellbar |
| Operating distance min. / max. adjustable: | 0…20 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| CIP / SIP: | CIP / SIP 121°C |
| Installation: | Nichtbündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Connection: | Steckerflansch M 12 x 1 |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 1199 Jahre |
| WHG certification: | Auf Anfrage |
