Produkt
Rechner Sensors
KA0527
Poproś o ofertę

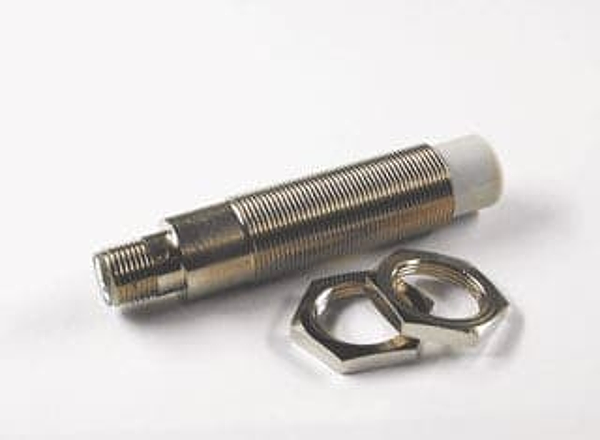

Prawa autorskie do obrazu: Rechner Sensors
Rechner Sensors KA0527
KAS-80-A23-A-Y5-3G-3D, ATEX
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Capacitive Sensor – ATEX. Series 80 – PNP. Housing M 18 x 1. Capacitive sensor for level and position control. Housing material: Stainless steel VA No. 1.4305 / AISI 303. Sensing distance 0.5…15 mm adjustable. With flange connector M 12 x 1. With manufacturer certificate, for use in zone 2. Ex II 3G Ex nA IIC T6 Gc X, for use in zone 22. Ex II 3D Ex mc IIIC T101°C Dc IP67 X
Pliki do pobrania
Parametry techniczne
| Thread / Process connection: | M 18 x 1 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Messing |
| Housing material lid: | PA / PPO |
| Electrical version: | 4-Polig DC |
| Operating current (Ie): | 2 x 0…150 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 200 Hz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | 8 mm |
| Operating distance min. / max. adjustable: | 0,5…15 mm |
| Operating voltage: | 10…30 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Connection: | Steckerflansch M 12 x 1 |
| CE: | JA |
| RoHS: | JA |
| ATEX product marking dust: | Ex II 3D IP67 T101° C X |
| ATEX product marking gas: | Ex II 3G EEx nA Ex II T6 X, |
| Certified Zones ATEX: | 3G3D |
| MTTF: | 470,79 Jahre |
| WHG certification: | Auf Anfrage |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
