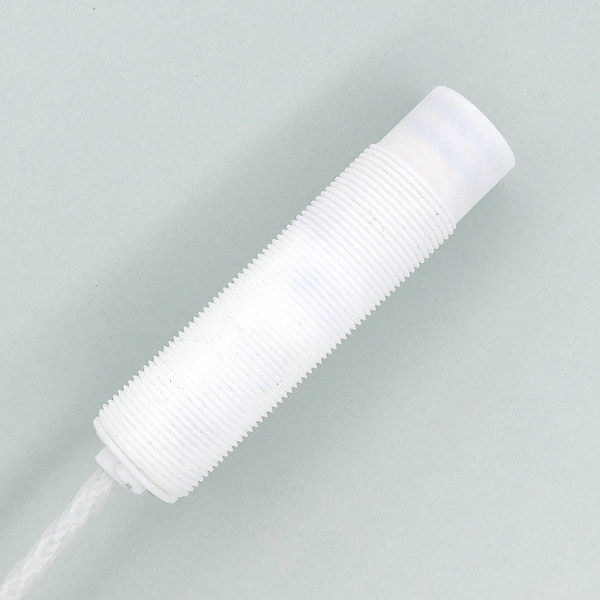

Rechner Sensors KA0391
KAS-80-A23-A-M18-PTFE-Z05-1-HP
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Capacitive Sensors. Series 80 – PNP. Housing Ø 34 mm. Housing material: PTFE. Ideal for detection of chemically aggressive media. Ideal for use in food applications. Sensing distance 0.5…15 mm adjustable. With PTFE-cable. Option: Total chemical resistance is given when ordering the sensor with PTFE cable and PTFE – protection set Art.-No. 196305
Pliki do pobrania
Parametry techniczne
| Thread / Process connection: | M 18 x 1 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | PTFE (FDA 21 CFR 177.1550) |
| Housing material lid: | PC (FDA 21 CFR 177.1580) |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 2 x 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 50 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | 8 mm |
| Operating distance min. / max. adjustable: | 0,5…15 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Cable length: | 5 m |
| Connection: | PTFE-Kabel, 4 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 537,62 Jahre |
| WHG certification: | Auf Anfrage |
