Rechner Sensors
KA0092
Poproś o ofertę
Prawa autorskie do obrazu: Rechner Sensors

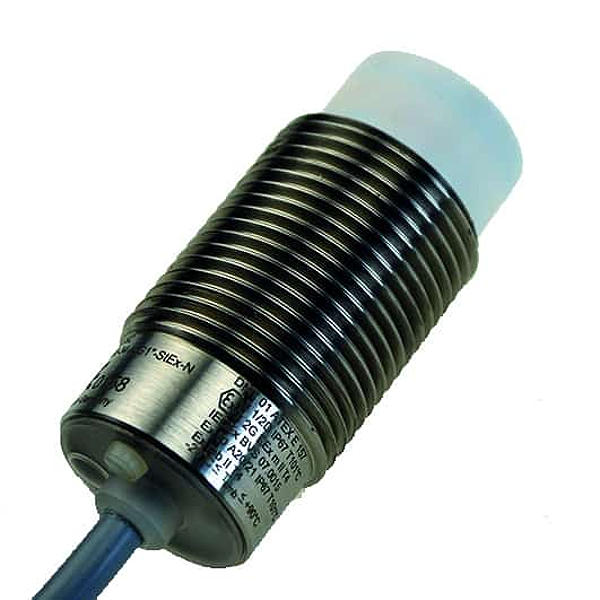

Rechner Sensors KA0092
KAS-80-34-A-G1"-StEx, ATEX
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Whitworth G. 1-inch cap. Sensor (1inch 1″) screw. G = Whitworth Pipe Thread (BSP – British Standard Pipe). Capacitive Sensors Series 80 – PNP – StEx – ATEX. Housing G 1“. F or use in areas with the risk of dust explosion, zone 20. F or use in areas with the risk of gas explosion, zone 1. Sensing distance 3…30 mm adjustable. DMT 01 ATEX E 157 IECEx BVS 07.0015. II 2 G Ex mb IIC T4 Gb Ex mb IIC T4 Gb. II 1/2 D Ex ta/tb IIIC T101°C Da/Db Ex ta/tb IIIC T101°C Da/Db
Pliki do pobrania
Parametry techniczne
| Thread / Process connection: | G 1" |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Housing material lid: | PA / PPO |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 2 x 0…150 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 5% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 50 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | 20 mm |
| Operating distance min. / max. adjustable: | 3…30 mm |
| Operating voltage: | 10…30 V DC |
| Permitted ambient temperature min.: | -20 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Cable length: | 3 m |
| Connection: | PVC-Kabel, 5 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| ATEX product marking dust: | Ex II 1/2 D Ex ta/tb Ex IIIC T101°C Da/Db |
| ATEX product marking gas: | Ex II 2G Ex mb Ex IIC T4 Gb |
| Certified Zones ATEX: | 2G1/2D |
| IECEX product marking dust: | Ex ta/tb IIIC T101°C Da/Db |
| IECEX product marking gas: | Ex mb IIC T4 Gb |
| MTTF: | 732,74 Jahre |
| WHG certification: | Auf Anfrage |
