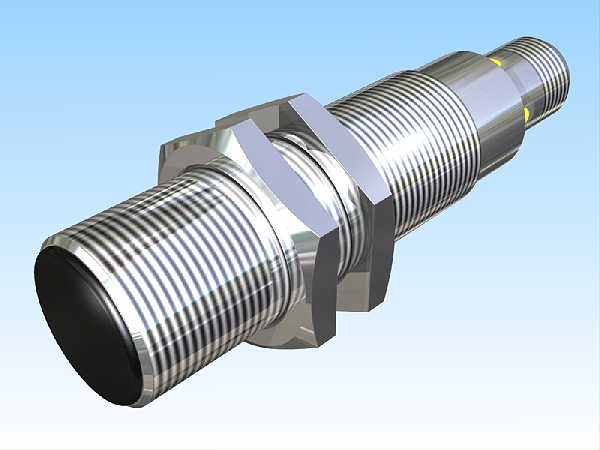

Pulsotronic 08317646265
KJ5-M18MB75-DPA-V2
Inductive sensor DC
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Pliki do pobrania
Parametry techniczne
| Name: | KJ5-M18MB75-DPA-V2 |
| Order number: | 08317646265 |
| Matchcode: | 9964-6265 |
| Switching distance: | 5 mm |
| Mounting: | shielded |
| Switch type: | Changeover |
| Signal Type: | DC PNP |
| Connection: | connector M12 |
| Connection diagramm: | |
| Dimension (in mm): | fine-pitch thread M18 x 75 |
| Operating voltage: | 10 - 30 V DC |
| Max. ripple: | ≤ 10 % |
| Voltage drop: | 2,4 V |
| Max. load current: | 200 mA |
| No load current: | ≤ 13 mA |
| Leakage current: | ≤ 10 µA |
| Switching frequency: | 800 Hz |
| Switching hysterese: | ≤ 15 % |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 5 % |
| Swiching state: | LED |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2: 2008 |
| Housing material: | Brass, nickel plated |
| Material active face: | Schulamid |
| Utilisation category: | DC 13 |
| Termination: | Connector M12 4pin |
| Errors and omissions exceptet: | 72,17 / 1582y |
| Fehler und Änderungen vorbehalten: |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
