Produkt
Pulsotronic
08317626300
KJ4-M12MN60-DPA
Poproś o ofertę

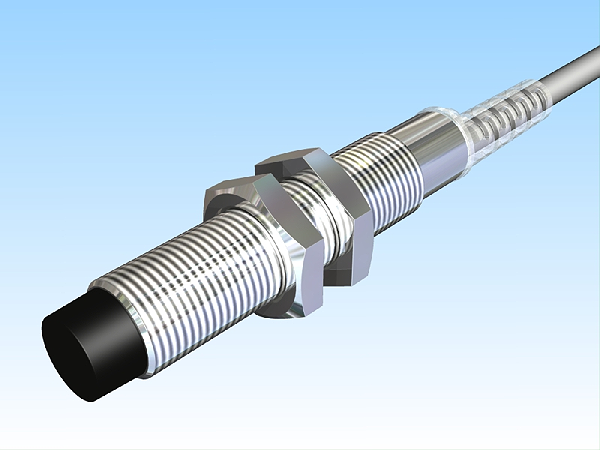

Prawa autorskie do obrazu: Pulsotronic
Pulsotronic 08317626300
KJ4-M12MN60-DPA
Inductive sensor DC
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Pliki do pobrania
Parametry techniczne
| Name: | KJ4-M12MN60-DPA |
| Order number: | 08317626300 |
| Matchcode: | 9962-6300 |
| Switching distance: | 4 mm |
| Mounting: | non shielded |
| Switch type: | Changeover |
| Signal Type: | DC PNP |
| Connection: | Cable |
| Connection diagramm: | |
| Dimension (in mm): | fine-pitch thread M12 x 60 |
| Operating voltage: | 10 - 30 VDC |
| Max. ripple: | ≤ 10 % |
| Voltage drop: | 2,4 V |
| Max. load current: | 200 mA |
| No load current: | ≤ 13 mA |
| Leakage current: | ≤ 10 µA |
| Switching frequency: | 1000 Hz |
| Switching hysterese: | ≤ 15 % |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 10 % |
| Swiching state: | LED |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2:2008 |
| Housing material: | Brass, nickel plated |
| Material active face: | Pocan KU 2-7503/1 + Batch RAL 9004LS |
| Utilisation category: | DC 13 |
| Cable material: | PVC LIYY grau (grey) |
| Termination: | 2m PVC 4x0,34mm² |
| FIT / MTTF acc. to SIEMENS 29500: | 65,91 / 1732y |
| Errors and omissions exceptet: |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
