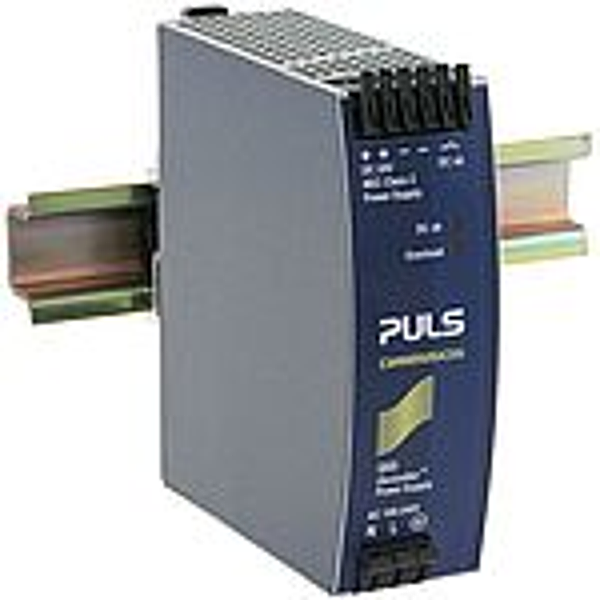

QS5.DNET
DeviceNet power supply
100-240V Wide-range input, active PFC. Efficiency up to 92%, SEMI-F47-200 approved. NEC Class 2 Listed. DeviceNet approved. Full output power between -25°C and +60°C. Spring-clamp terminals, DC-OK contact
AC-Input Voltage: | AC 100-240V (-15%/+10%) |
DC-Input Voltage: | DC 110V-300V (± 20%) |
EN61000-3-2(PFC-Norm): | fulfilled |
Harmonic Correction: | active |
Power Factor: | 0.90 |
Input Inrush Current Limitation: | active |
Peak turn on current: | 9A/11A (D1) |
External Input Fuse Recommendation: | min. B-6A / C-3A |
Nominal Voltage: | 24Vdc |
Adjustment Range: | 24 |
Output Current Range: | 3.8-3.8A |
Output Current: | 3.8A at 0V 3.8A at 24V |
Output Power: | 91W |
max. Ripple and Noise Voltage: | 50mVpp |
Size (WxHxD): | 40mm x 124mm x 117mm |
Weight per Piece (excluding packing): | 620g |
Operat. Temperature Range: | -25°C ... +70°C |
Derating: | 2W/°C at >+60°C |
Mounting Method: | DIN-Rail |
Efficiency, typ.: | 92.0% |
Power Losses, typ.: | 7.9W |
MTBF SN 29500 @ 40°C (h): | 831.000h |
Connection method: | Spring-clamp terminals |
DC-OK Signal: | yes |
D1): | Peak current at 120Vac/230vac, independent of temperature |
