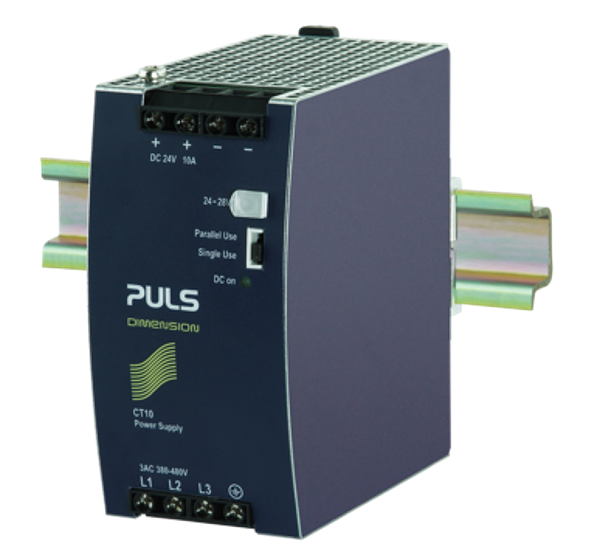

Puls CT10.241
DIN-rail power supplies for 3-phase systems
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
380-480V Wide-range input and passive PFC. Efficiency up to 92,9%. Negligibly low input inrush current. 20% Power reserves can be used continuously up to +45°C. Full output power between -25 and +60°C. Adjustable to parallel mode for load sharing
Parametry techniczne
| AC-Input Voltage: | AC 380-480V (-15%/+20%) |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | PFC |
| Power Factor: | 0.53 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 4A/4A (C2) |
| External Input Fuse Recommendation: | min. B-6A / C-3A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 10-8.6A |
| Output Current: | 8.6A at 28V 10A at 24V |
| Output Power: | 240W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 62mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 750g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 6W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 92.8% |
| Power Losses, typ.: | 18.6W |
| MTBF SN 29500 @ 40°C (h): | 975.000h |
| Connection method: | Screw terminals |
| C2): | Peak current at 3x400vac/ 3x480Vac, independent of temperature |
