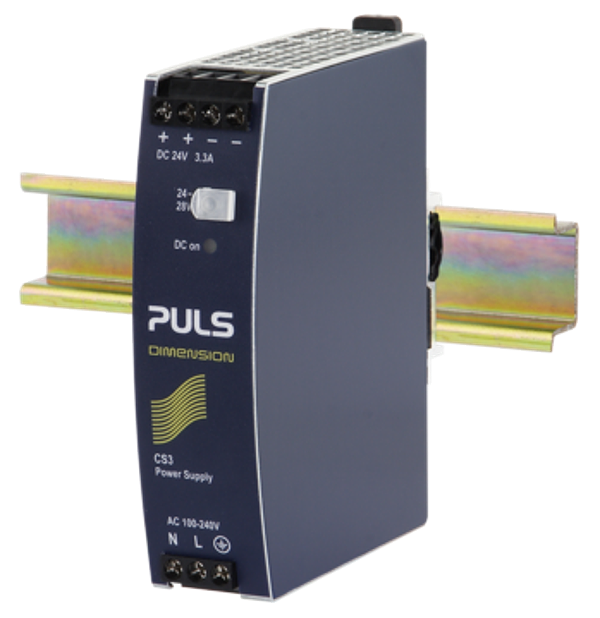

Puls CS3.241
DIN-rail power supplies for 1-phase systems
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
AC 100-240V Wide-range input. Width only 32mm. NEC Class2 compliant. Efficiency up to 89.8%. Full power between -25°C and +60°C
Parametry techniczne
| AC-Input Voltage: | AC 100-240V (± 10%) |
| DC-Input Voltage: | DC 110V-300V (-20%/+25%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Power Factor: | 0.56 |
| Input Inrush Current Limitation: | NTC |
| Peak turn on current: | 23A/45A (B1) |
| External Input Fuse Recommendation: | min. B-10A / C-6A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 3.3-2.7A |
| Output Current: | 2.7A at 28V 3.3A at 24V |
| Output Power: | 80W |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 32mm x 124mm x 102mm |
| Weight per Piece (excluding packing): | 430g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 1.8W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 89.8% |
| Power Losses, typ.: | 9.1W |
| MTBF SN 29500 @ 40°C (h): | 2.243.000h |
| Connection method: | Screw terminals |
| B1): | Peak current at 120Vac/230Vac, ambient temperature of +40°C and cold start |
