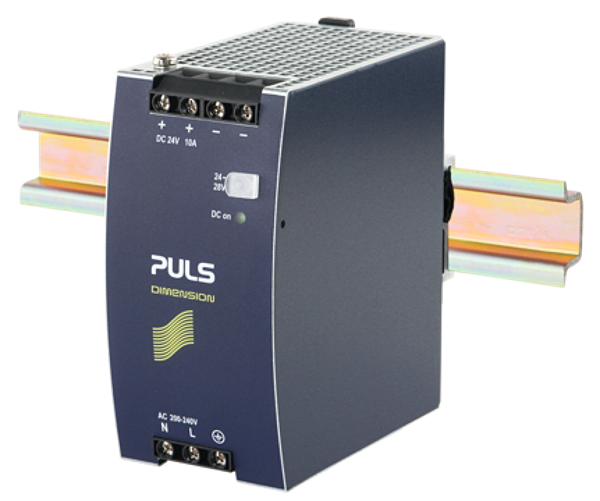

CS10.244
DIN-rail power supplies for 1-phase systems
AC 200-240V single-phase input. Width only 60mm. Efficiency up to 91.3%. Easy fuse breaking due to high overload peak current. 20% Output power reserves. Full output power between 0°C and +60°C
AC-Input Voltage: | AC 200-240V (± 10%) |
DC-Input Voltage: | |
EN61000-3-2(PFC-Norm): | not fulfilled |
Power Factor: | 0.52 |
Input Inrush Current Limitation: | NTC |
Peak turn on current: | 48A (M1) |
External Input Fuse Recommendation: | min. B-10A / C-6A |
Nominal Voltage: | 24Vdc |
Adjustment Range: | 24-28V |
Output Current Range: | 10-8.6A |
Output Current: | 8.6A at 28V 10A at 24V |
Output Power: | 240W |
Power Reserves: | 20% Power Boost |
max. Ripple and Noise Voltage: | 50mVpp |
Size (WxHxD): | 60mm x 124mm x 117mm |
Weight per Piece (excluding packing): | 700g |
Operat. Temperature Range: | 0°C ... +70°C |
Derating: | 6W/°C at >+60°C |
Mounting Method: | DIN-Rail |
Efficiency, typ.: | 91.3% |
Power Losses, typ.: | 23.4W |
MTBF SN 29500 @ 40°C (h): | 910.000h |
Connection method: | Screw terminals |
M1): | Peak current at 230Vac, ambient temperature +40°C and cold start |
