8177024

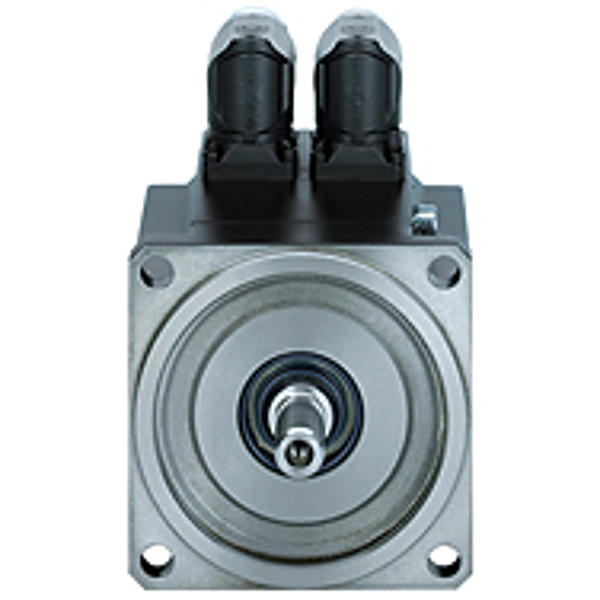

PMCtendo SZ.85/0/1/2/7/K/H/20/00
Mo = 66.1 Nm Io = 37.9 A UN = 400 V nN = 2000 min-1 Jmot = 133 kgcm2. Encoder ECI 1118 EnDat2.2 single-turn; without brake.
Certifications:: | CE |
Motor size:: | 85 |
Standstill torque:: | 66.10 Nm |
Rated load torgue:: | 43.70 Nm |
Peak torque:: | 205.00 Nm |
Standstill current:: | 19.50 A |
Nominal voltage:: | 14.20 A |
Peak current:: | 87.00 A |
Rated speed (RPM):: | 2000 rpm |
Rated voltage:: | 400 V |
Moment of inertia:: | 133.00 kgcm² |
Brake:: | No |
Feedback:: | 1 = Endat2.2 inductive single-turn |
Motor connection:: | Angled swivel connector |
Connection direction:: | To A-end |
Cooling:: | 0 = Convection |
Type of motor shaft:: | without feather key |
Longueur d'arbre:: | 80 mm |
Flange dimension:: | 190 mm |
Overall motor length:: | 345 mm |
Centering diameter:: | 180 mm |
Pitch circle diameter:: | 215 mm |
Number of poles:: | 16 |
Protection type, housing:: | IP56 |
Gross weight:: | 50500 g |
Net weight:: | 45800 g |
