Pilz
8176574
PMCprotego D.24/100/0/P/2/208-480VAC
Poproś o ofertę

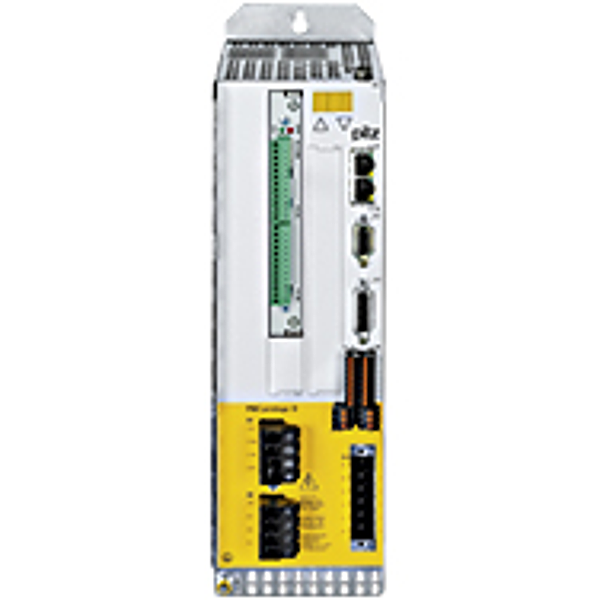

Prawa autorskie do obrazu: Pilz
Pilz 8176574
PMCprotego D.24/100/0/P/2/208-480VAC
Base device with increased peak output current Technical data at 3 x. 400 V AC: Continuous output current: 24 A; Imax (2 s) = 72 A; Imax (5, s) = 48 A; Power consumption in S1 mode: 18 kVA Integral brake, resistor Further hardware options: Expansion card I/O.
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Certifications:: | CE, EAC (Eurasian), TÜV |
| Hardware option 1:: | 1 = I/O expansion |
| Hardware option 2:: | 0 = Without |
| Hardware option 3:: | 0 = Without |
| Firmware option:: | 2 = EtherCat |
| Supply voltage (V):: | 208,0 - 480,0 |
| Continuous output current at 3x208V:: | 24.0 A |
| Continuous output current at 3x230V:: | 24.0 A |
| Continuous output current at 3x400V:: | 24.0 A |
| Continuous output current at 3x480V:: | 24.0 A |
| Output stage clock frequency:: | 8 kHz |
| Peak current:: | 72.00 A |
| Peak output current max. 5s:: | 48.00 A |
| Supply voltage 2 (V):: | 24 |
| Supply voltage type 2:: | DC |
| Number of STO-Enables:: | 2 |
| Number of digital inputs:: | 4 |
| Number of analogue inputs:: | 2 |
| Number of CANopen interfaces:: | 1 |
| Width dimension:: | 100.0 mm |
| Height dimension:: | 348.0 mm |
| Depth dimension:: | 243.0 mm |
| Gross weight:: | 6900 g |
| Net weight:: | 5600 g |
| Ambient temperature:: | 0 - 40 °C |
