751500

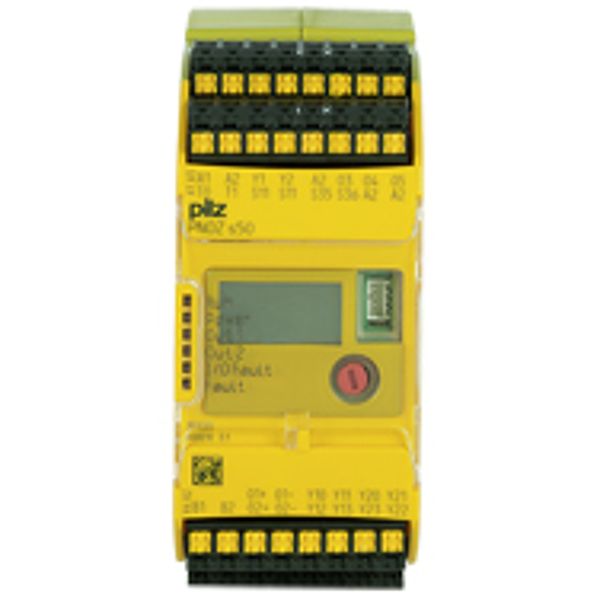

PNOZ s50 C
PNOZsigma Safety relay (standalone). Control/monitoring of inductive, actuators, such as brakes and valves, UB 24/48 V DC, max. 3.5/1.75 A, continuous current, max. 6.5/3.25 A output current in accordance with. PLe and SIL 3, display operation push & turn, plug-in spring-loaded, terminals.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV |
Application options:: | Sicheres PWM-Schaltgerät |
Operating modes:: | Dual-channel |
Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1 |
Terminal type:: | Spring-loaded terminal |
Supply voltage (V):: | 24,0 |
Supply voltage type 2:: | DC |
Width dimension:: | 45.0 mm |
Height dimension:: | 100.0 mm |
Depth dimension:: | 120.0 mm |
Gross weight:: | 276 g |
Net weight:: | 257 g |
Ambient temperature:: | 0 - 55 °C |
ECCN: | |
Kraj pochodzenia: | |
EAN: | |
Waga: | 0,00 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
